aluminium sheet hydraulic Roll Forming Machine
Brief Introduction of Zhongtuo aluminium sheet hydraulic roll forming machine:
Zhongtuo cold roll forming machine has been built since 1996. The Roofing Sheet Roll Forming Machine is one of the type used in roofing tile area. For catering to customer requirements, all machine elements will be customized according to customer detail requirement.
For now our machine could proce material thickness from 0.2-1.2mm, the working speed could reach 50m/min. And for the type of roofing sheet machine, there are high level and normal type both in single layer and double layer.
Here is one example of machine for your reference:
Components of aluminium sheet hydraulic roll forming machine production line:
| No. | Name | Unit | Qty |
| 1 | Manual Decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 7 | Output table | set | 1 |
| Payment terms | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
| Delivery | Within 45 working days after receipt of deposit. |
| Packing | Nude packing with 1*40GP container |
| Warranty | One year, and we will provide the technical support for the whole life. |
| Installation | 1. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment) |
| Spare part | 1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs; 2. Rubber mat 1 pcs; 3. Bolt spanner 1 pcs |
Production parameters of aluminium sheet hydraulic roll forming machine
Processing material: colored steel plate, galvanized plate, or aluminum plate
Material thickness: 0.2- 1.2mm
Forming speed: 25m/min
Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
| Loading capacity | Uncoiling width | Inner diameter |
| 5T | 1200mm | 450-550mm |
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature: Ensure stability, precision and lifetime.
| No. | Main parameter |
| 1 | Length of the main part | About8200*1650*1500mm |
| 2 | Weight of main part | About3.5 t |
| 3 | Voltage | 380V/50HZ3Phase (as customer`s request) |
| 4 | Roller fixer | Middle plate welded |
| 5 | Frame | 350 H steel welded |
| 6 | Frame thickness | 16mm |
| 7 | Drive mode | Chain |
| 8 | Material of rollers | 45# steel, surface hard chromium plating. |
| 9 | Material of shafts | 45# steel |
| 10 | Diameter of shafts | diameter 80mm |
| 11 | Number of rollers | 15 rollers |
Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
(include cutting tools, hydraulic tank, cutter machine)
| Blade Material | Cutting system |
| Cr12 quenched | Full automatic |
Counter
One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
Controlling device
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
| Screen | PLC |
| Text screen displayer | Taida DVP14ES from Taiwan or customiz |
Hydraulic
(Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves)
| Orgin | Power |
| Advanced hydraulic system from Taiwan | 5.5kw |
Here are more pictures for your reference:

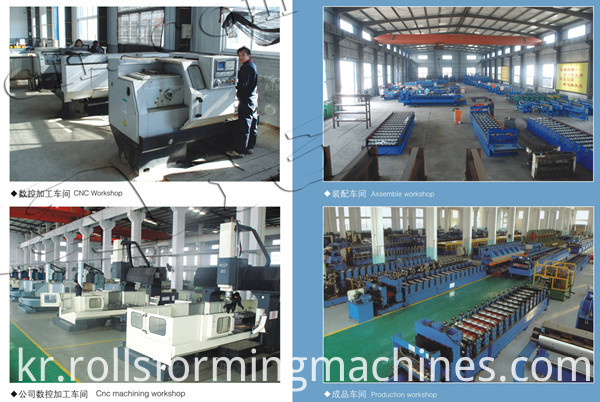

Company Information
ZT ( Zhongtuo Roll Forming Machinery Co., Ltd.) is a company specialising in the field of cold roll forming machines and metal sheet processing. We are developing various cold roll forming machines for roof tiles making, ceiling metal frame and welding pipe machine, which are used in the following areas like construction industry, automotive industry, packing industry. ZT factory was built in 1966 and its machins have been sold more than 50 countries, so please trust us. With us, create your own cold roll forming.
Other Machines
What other roofing sheet machine we can make:
2.Color metal roof and wall sheet
What makes our machine different with orthers?
1. Pay more attention to details. For the surface grinding, roller grinding, we would like to make it perfect smooth, as if so, the finished product surface will have scrach.
2. We customize machine stricktly according to the tech base not fully on the customer requirement as the tech team have more than 16 working experience. If some ideas is not pratical, we will point it out at the first time.
3. We presist that only high quality machine can make customer satified.
Here some knowledge about the roofing sheet roll forming machine:
1. How to make many different drawing profiles by one machine?
Normally speaking, one machine could produce many types drawing profile roofing sheet just by adjusting the roller spacer.

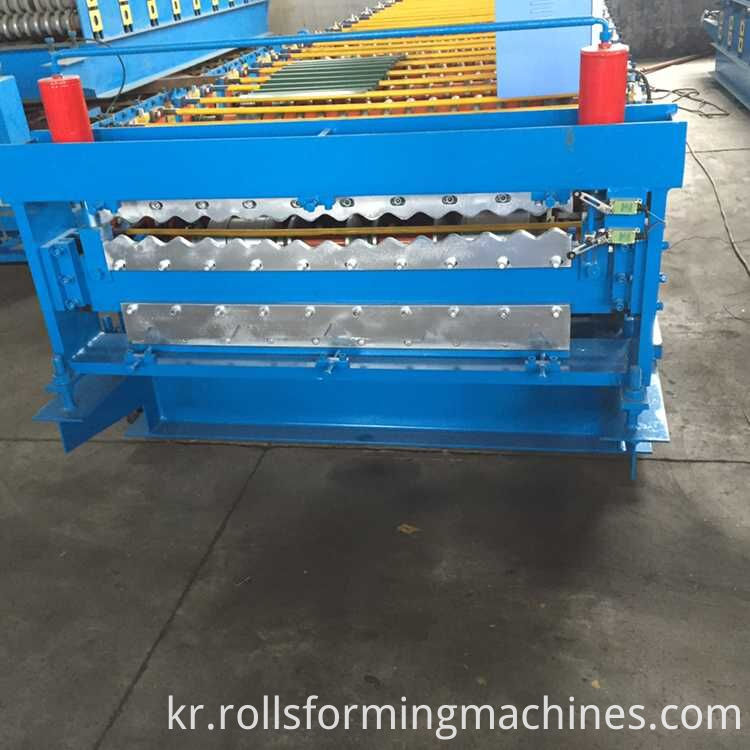

But if you do not have knowledge of machine, you can choose the double layer roll forming machines. For example, by double layer machine, you can either make round wave or
2.How to check roofing sheet machine quality?
When machine working, there will be finished product out, checking the edge of sheet can help you tell whether the machine swing or not when working.
Check the machine frame thickness, diameter thicknss, roller diameter and others can help you tell the machine quality.
Looking for ideal Iron Roof Sheet Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Corrugated Iron Making Machine are quality guaranteed. We are China Origin Factory of Corrugated Metal
roof tile making machine. If you have any question, please feel free to contact us.
