Corrugated Roof Sheet Making Machine
Description of Corrugated Roof Sheet Making Machine
This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The maximum speed can be 45 m/min,greatly improving the production efficiency.The finished corrugated sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel of corrugated roofing machine is light as well as low cost but high strength, short building period, and re-cycle use.
Specification of Corrugated Roof Sheet Making Machine
Material Type:GI/PPGI/AL
Material width:914/1000/1200/1220/1250 mm(customized)
Material Thickness:0.3-0.8 mm
Sheet length: Any length
Working Speed:8-25 m/min (10 piece per min as 8 feet per piece,standard machine)
Control System:Mitsubishi/Siemens PLC& transducer(customized)
Total Power:About 8.5 kw
Total Weight:About 6 T(up to the final design)

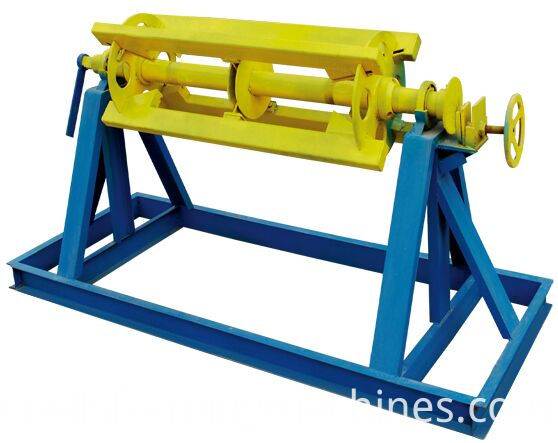

Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system
Loading-capacity:5 T
Uncoiling-width:1000/1200/1250 mm
Inner-diameter: 450-550 mm

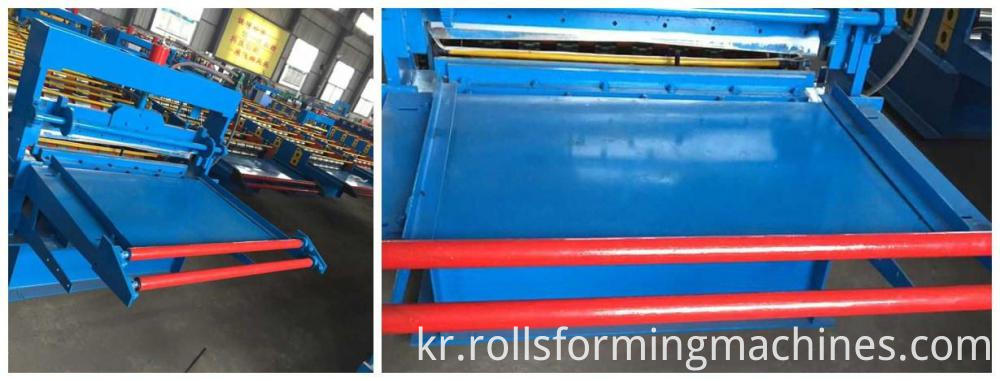

Entry Beach of Corrugated Roof Sheet Making Machine
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat,
parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.
Main Roll Forming Machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,
roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:8650*1650*1500 mm
Voltage:380 V/50 HZ 3 Phase
Roller fixer : middle plate
Material of shafts: 45#steel
Diameter of shafts: 80 mm
Number of rollers : 18 rollers
Shearing Mechanism of Corrugated Roof Sheet Making Machine
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Function: Automatic cutting controlled by PLC.
Material of blades: Cr12 quenched
Power supply : hydraulic power

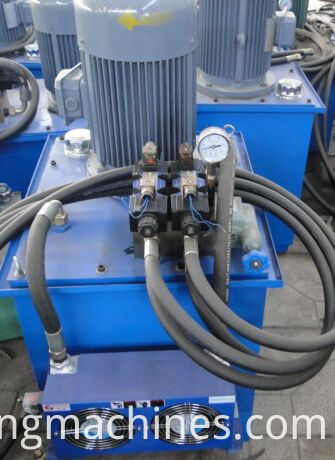

Hydraulic Station of Corrugated Roof Sheet Making Machine
Usage :It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes. And two sets of electromagnetism valves.
Power: 4 kw
Hydraulic oil
: 46#

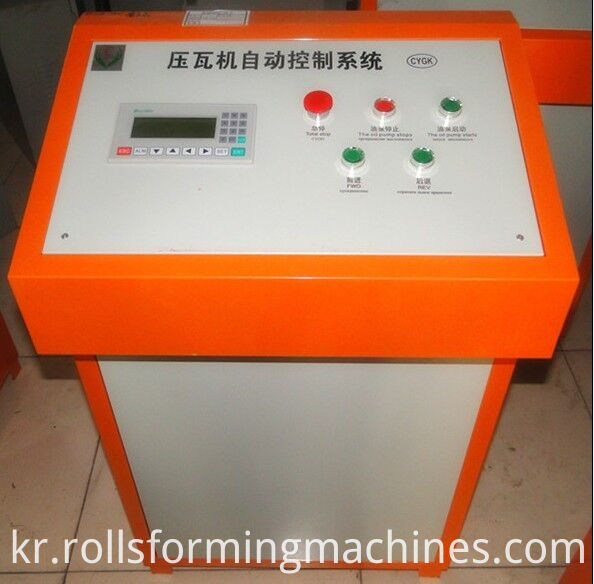

Electric Control System
Feature:
Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.
If you need, we can change it other brand or little computer type for touching screen.
