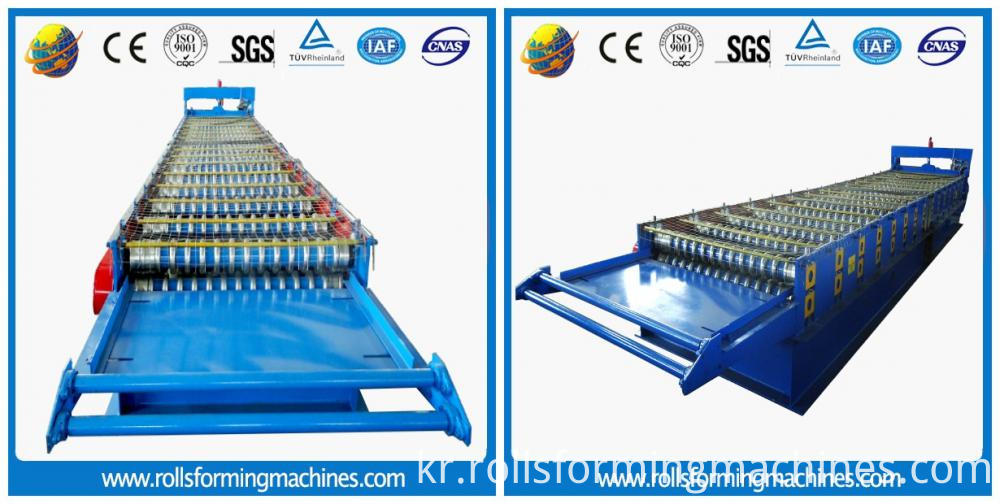

Corrugated Roof Sheet Making Machine Product description
This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The miximum speed can be 45m/min,greatly improving the production efficiency.The finished corrugated sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.
Specification of Metal Floor Deck Sheet Panel Roll Forming Machine
Material Type:GI/PPGI/AL
Material width:914/1000/1200/1220/1250mm(customized)
Material Thickness:0.3-0.8mm
Sheet length: Any length
Length Tolerance:±2mm/6m
Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)
Control System:Mitsubishi/Siemens PLC& transducer(customized)
Total Power:About 8.5KW
Total Weight:About 6T(up to the final design)

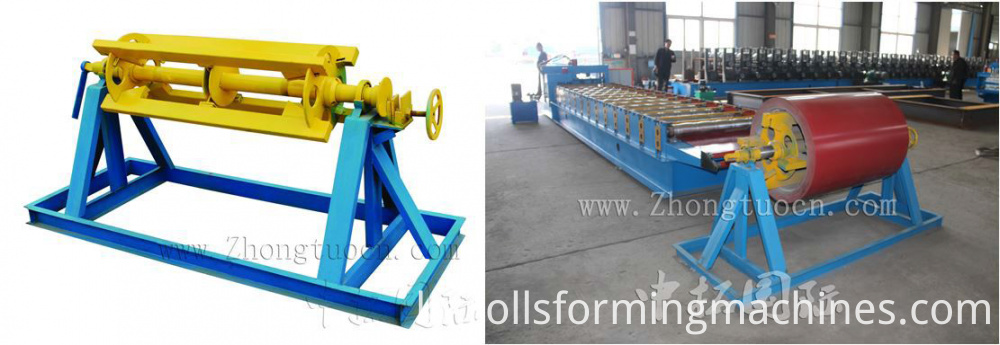

Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system
Loading-capacity:5T
Uncoiling-width:1000/1200/1250mm
Inner-diameter: 450-550mm
Entry Beach
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

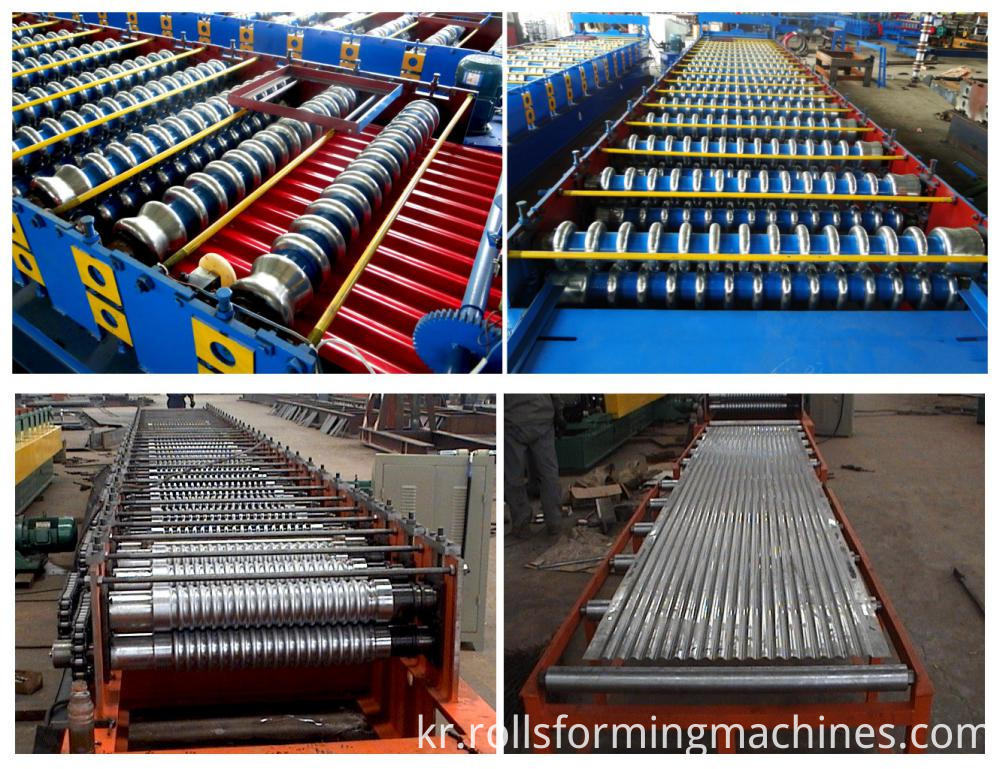

Main Roll forming machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:8650*1650*1500mm
Voltage:380V/50HZ3Phase
Roller fixer : middle plate
Material of shafts: 45#steel
Diameter of shafts: φ80mm
Number of rollers : 18 rollers
Shearing Mechanism
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Function: Automatic cutting controlled by PLC.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Products receiving tables
