Sheet Metal Floor Decking Forming Machine
Product description
Steel structural floor panel made by Sheet Metal Floor Decking Forming Machine is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Our World Technology Machinery steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.It is also named as Floor Decking Machine or Floor Decking Forming Machine or Sheet Metal Machine.
Features
1.high efficiency
2.high flexibility
3.good performance and low production cost

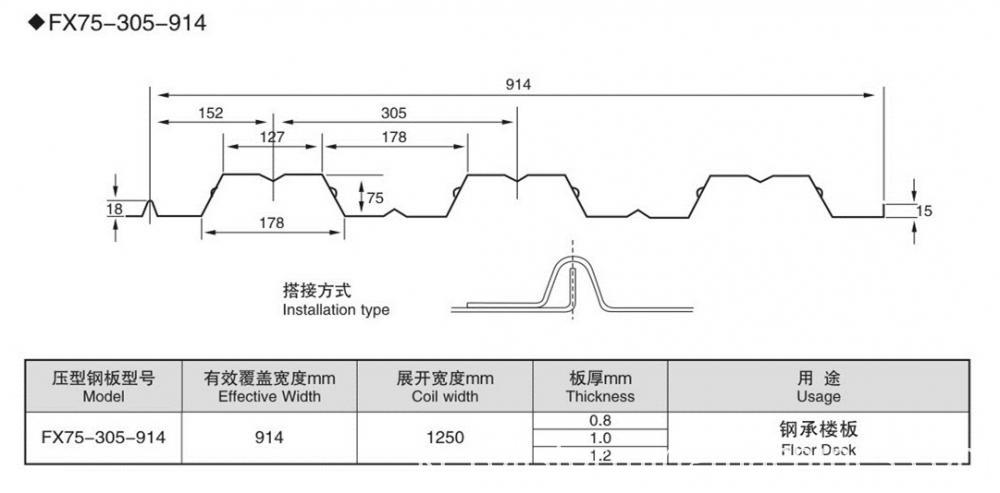

Drawings profile or finished product pictures
Main technical parameters of Sheet Metal Floor Decking Forming Machine
Material Type:GI/PPGI
Material Width:1250mm(customized)
Material Thickness:0.70-1.20mm
Sheet length:Any length
Length Tolerance:±2mm/6m
Working Speed:12-15 m/min (10 piece per min as 8 feet per piece,standard machine)
Control System:Mitsubishi/Siemens PLC& transducer(customized)
Total Power:About 18.5KW
Total Weight:About 14T(up to the final design)
Transporting: 1×40ft Container
Technical process of Sheet Metal Floor Decking Forming Machine
Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting→Products receiving
Un-coiler System of Sheet Metal Machine
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system
Loading-capacity:5T
Uncoiling-width:1250mm
Inner-diameter: 450-550mm
Entry Beach of Steel Floor Decking Forming Machine
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.
Main Roll Forming Machine of Steel Floor Decking Forming Machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:6.7×1.7×1.3m
Voltage:380V/50HZ3Phase or by buyer`s requirement
Roller fixer : middle plate
Material of shafts: 45#steel, O.D.: 90mm, quenching and tempering treatment
Diameter of shafts: φ70mm
Number of rollers : 24rollers
Shearing Mechanism of Steel Floor Decking Forming Machine
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products
Cutting system: adopt advanced hydraulic cutting system, automatic cut after forming no distortion, waste, high safe factor(main motor stops and then cuts).
Cutting type: stop machine cutting.
Function: Automatic cutting controlled by PLC.
Material of blades: Cr12MoV steel with quenched treatment 60-62℃
Power supply : hydraulic power
