Steel Deck Roll Fomring Machine,Steel Floor Decking Machine
Product Description
To furnish the diverse requirements of our clients in the best possible manner we are involved in a wide range of steel deck Roll Forming Machine.These are widely used for manufacturing tiles of various deigns which are used in various buildings, homes and many more. These machines have high tensile strength and rigid construction.Offered products are available in various technical specifications as per the clients requirements.
Features
Cost effective
Fine quality
Completely tested
Component of Steel Floor Decking Machine
| Equipment and Qty. |
| Decoiler | 1set |
| Main roll forming machine | 1 set |
| PLC control station | 1 set |
| Hydraulic station | 1 set |
| Post cut | 1 set |
| Electric motor | 1 set |
| Runout table | 1 set |
Drawings of floor deck
Specification of steel deck roll forming machine
Processing material:galvanized plate
Material thickness: 0.6- 1.2 mm
Material hardness: 195 mpa---350 mpa
Formed width: 960 mm
Forming speed:12 m/min
Working Flow of steel deck roll forming machine
Parameters of Steel Floor Decking Machine
| Uncoiler System
| Usage: It is used to support the steel coil and uncoil it in a turntable way. Loading capacity:5 T Uncoiling width:1200 mm Inner diameter: 450-550 mm.
|

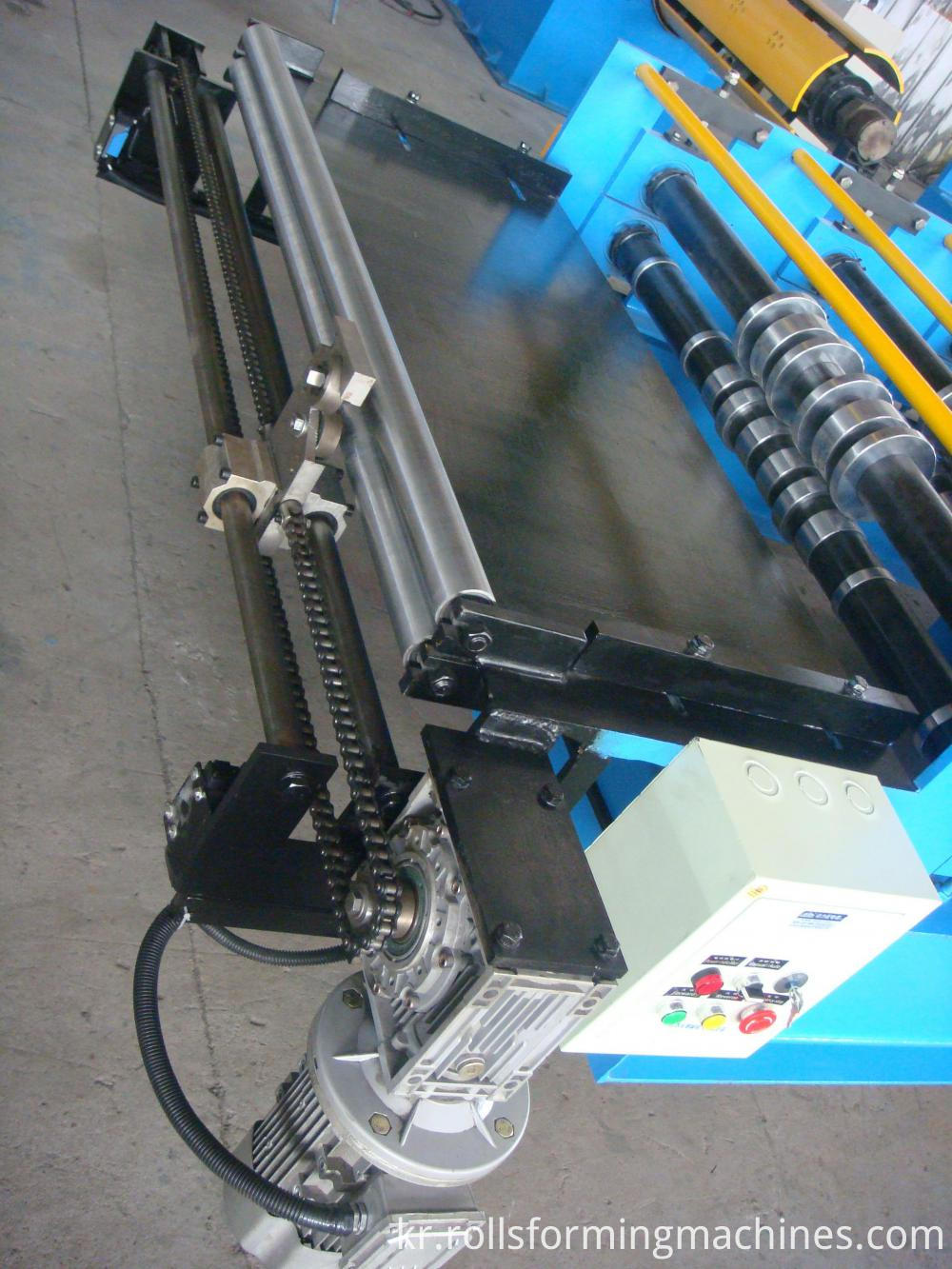

| Entry Beach
| Usage: Put the raw material (steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
|
| Main Roll Forming System    | Size of the main part: about 12500 х 1850 х 1500 Weight of main part:11.5 tons Voltage: 380 V/50 HZ 3 Phase or as your required Roller fixer : middle plate Frame : 400 mm H beam steel welded Drive mode: case of differential Material of rollers: 45# steel, surface hard chromium plating. Material of shafts: 45# steel Diameter of shafts: φ 90 mm Number of rollers : 24 rollers Main power:18.5 kw
|
| Shearing Mechanism   | Feature : Ensure stability, precision and cutting speed Function : Automatic cutting controlled by P LC It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr 12 quenched Power supply : hydraulic power Components: It contains one set of blade, one hydraulic tank and one cutter machine.
|

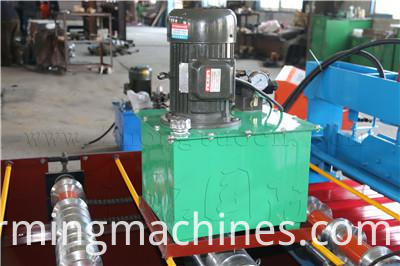

| Hydraulic Station
| It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job Power: 5.5 kw Hydraulic oil: 46# Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1sets of electromagnetism valves.
|
|
Electric Control System
 | Feature: 1.Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime. If you need, we can change it other brand or little computer type for touching screen.
|
|
Counter
 | One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
|

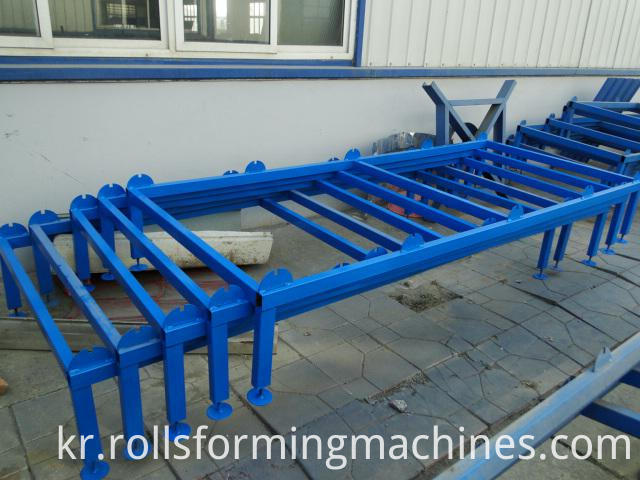

| Products receiving tables
| 1. It adopts welded steel and supported roller to transmit the products. 2. 3m/set with 2sets
|
| Accessories
| 1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. Rubber mat 1 pcs; 3.Bolt spanner 1 pcs
|
| Payment terms Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment. Delivery:within 45 working days after receipt of deposit.
| Warranty 1. Two years guarantee, and we will provide the technical support for the whole life. 2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary, one technician needed. 4. Training time: one week (contains the time of installation and adjustment)
|
FAQ
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Looking for ideal Steel Deck Roll Fomring Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Floor Decking Machine are quality guaranteed. We are China Origin Factory of Swallow Decking Forming Machine. If you have any question, please feel free to contact us.
