Top Roofing Ridge Cap Roll Forming Machine
The coil width of this Top Roofing Ridge Cap Roll Forming Machine is usually from 300-550mm. The thickness of Top Roofing Ridge Cap Forming Machine is between 0.25-08mm.It can continuous form the steel sheet according to customer`s requirement, automatically cut to length. This equipment has many advantages, just like light weight, high forming speed,low noise, stable transmission, easy operation, good look and so on.

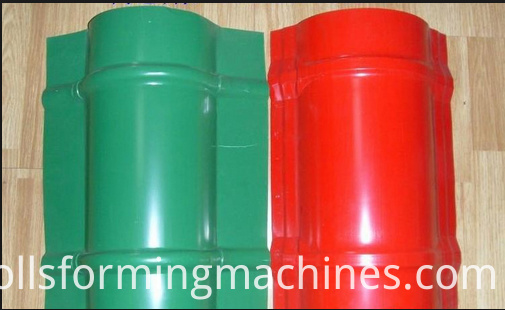

Drawings profile or finishes product pictures

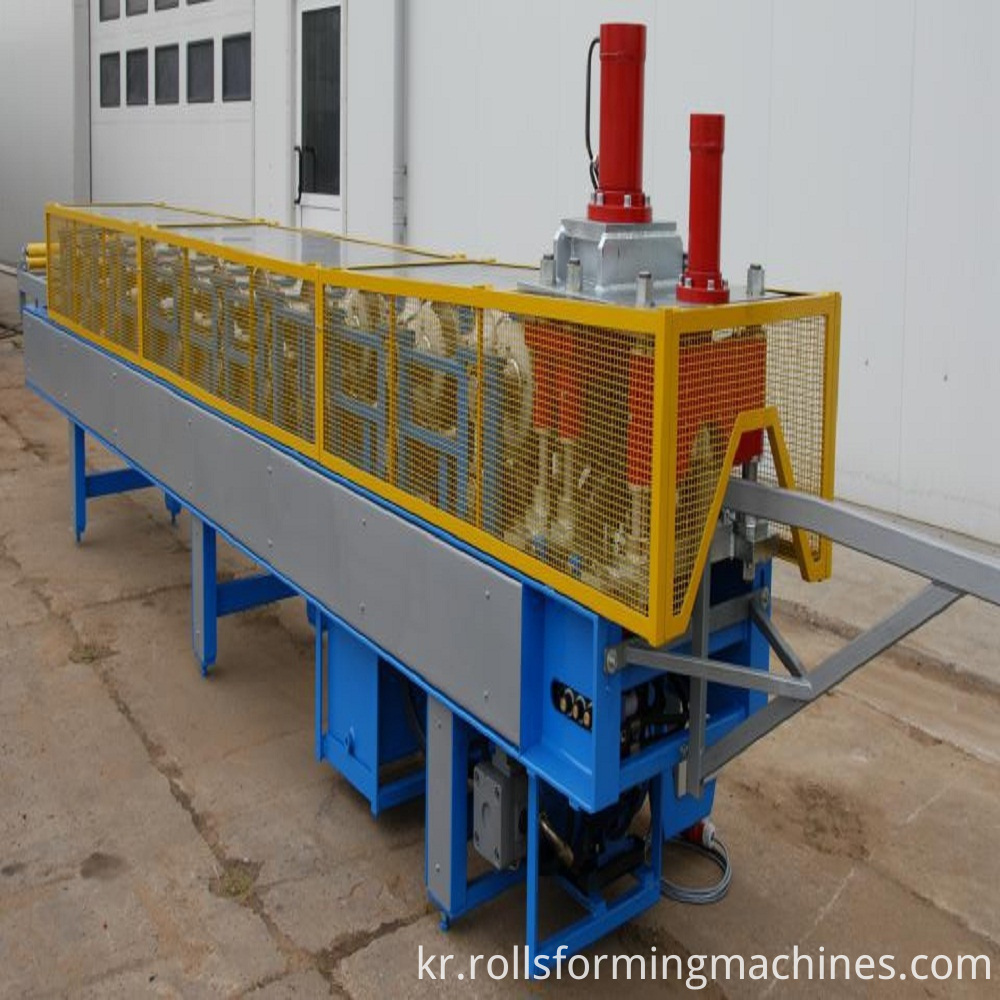

General overview of Top Roofing Ridge Cap Roll Forming Machine

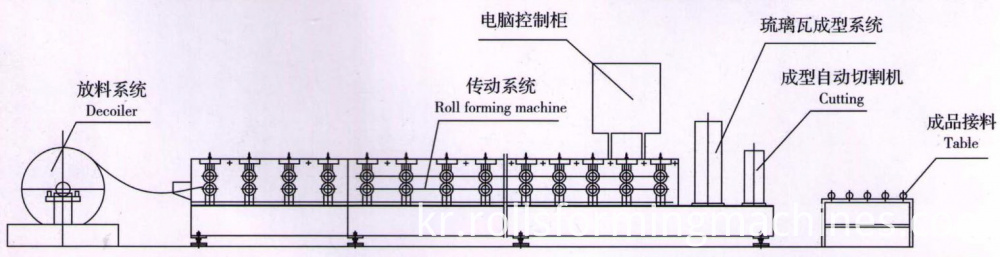

Working flow of Top Roofing Ridge Cap Roll Forming Machine

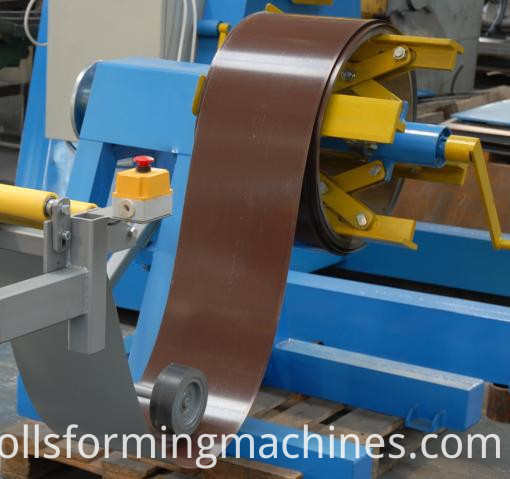

Uncoiler System of Top Roofing Ridge Cap Roll Forming Machine
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5T
Uncoiling width: 1000mm
Inner diameter: 450-550mm
Entry Beach of Top Roofing Ridge Cap Roll Forming Machine
Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.It is set in the beginning of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.

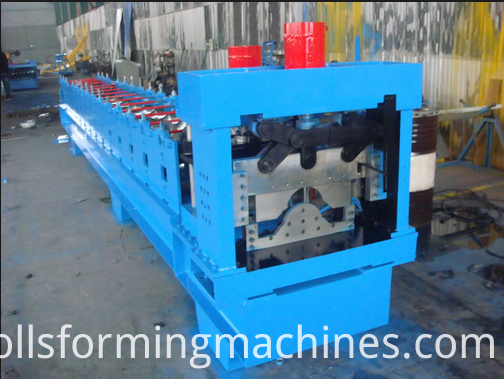

Main Roll Forming System of Top Roofing Ridge Cap Roll Forming Machine
Length of the main part: about 6500*1300*1400
Weight of main part: 3.5 tons
Voltage: 380V/50HZ 3Phase or as customer's request
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ60mm
Number of rollers: 11 rollers
Main power: 3.2kw
Step-formed mechanism
Feature: it is used to make the step , the glazed tile's final formed
Material of mold: Cr12 quenched
Shearing Mechanism of Top Roofing Ridge Cap Roll Forming Machine
Feature: Ensure stability, precision and cutting speed
Function: Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply: hydraulic power
Components: It contains one set of blade, one hydraulic tank and one cutter machine.

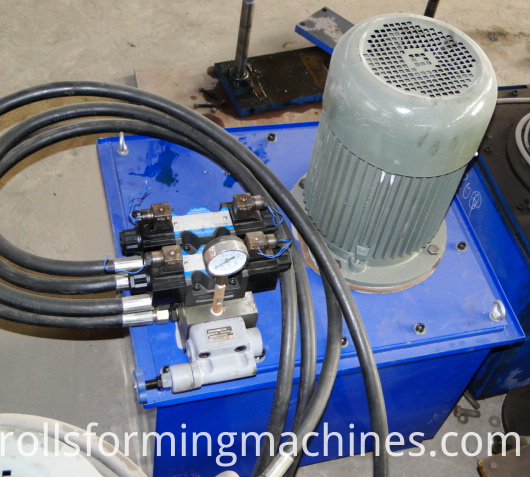

Hydraulic Station of Top Roofing Ridge Cap Forming Machine
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Power: 5.5kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and four hydraulic pipes. and two sets of electromagnetism valves.

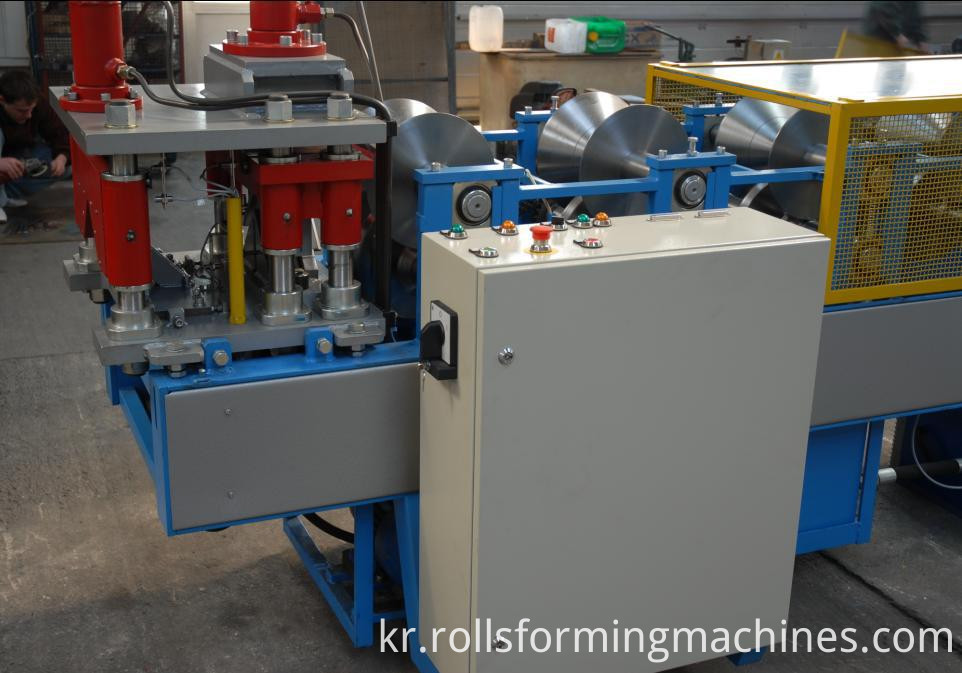

Electric Control System of Top Roofing Ridge Cap Forming Machine
Feature:
1.Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Panasonic
Looking for ideal Top Roofing Ridge Cap Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Top Roofing Ridge Cap Forming Machine are quality guaranteed. We are China Origin Factory of Standard Quality Ridge Cap Making Machine. If you have any question, please feel free to contact us.
