Z Shaped Steel Purlin Cold Roll Forming Machine Z Purlin Machine
Process Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving Product name: Z Shaped Steel Purlin Cold Roll Forming Machine 1.SuitableMaterial Type: GI/PPGI/AL; Thickness: 2.0-3.0mm 2.ProductSpecifications: Length: Any length; Length Tolerance: ±2mm/6m 3.Working Speed: 8-15 m/min (Standard machine) 4.Total Power: 6KW 5.Total Weight: About 6.2T (Up to final design) Un-coiler System Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system Loading capacity: 5T ; Uncoiling width: 1000mm ; Inner diameter: 450-550mm Coil feeding part Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Forming device Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
1. Length of the main part: 6800*800*1200mm ; 2. Voltage: 380V/50HZ3Phase (as customer`s request) ;3. Frame: Middle plate welded Memorial arch frame type ; 4. Frame thickness: 25mm ; 5. Drive mode: Gear or chain ;6. Material of rollers: 45# steel with tempering ; 7. Material of shafts: 45# steel with tempering ; 8. Diameter of shafts: φ80mm ; 9. Number of rollers: 12rollers ;10. Main power: 11kw (Cycloidal planetary gear speed reducer). Cutting device Blade Material: Cr12 steel with quenched treated 60-62°C
Punching device Power: 3kw(double values) ; material: Cr12 ; quantity: 2 ; oil cylinder: 2 Controlling device Screen: Text screen displayer ; PLC: Taida DVP14ES from Taiwan ; Coder: Omron Hydraulic Orgin: Advanced hydraulic system from Taiwan ; Power: 3kw Our Services

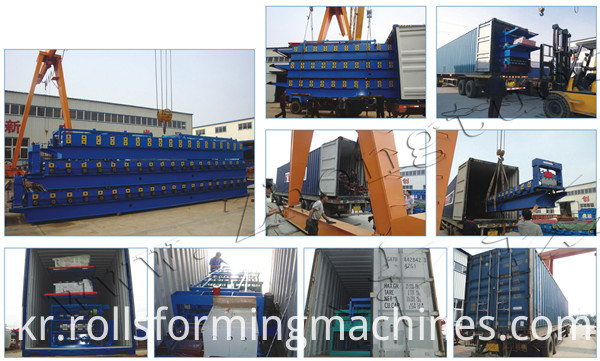

1. Installation and training: a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr ain your workers/technician face to face. b.Without visiting, we will send you user manual and video to teach you to install and operate. C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. 2. After Service a.One year guarantee for whole machine. b.24 hours technical support by email or calling Packaging & Shipping
Looking for ideal Z Shaped Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Z Shaped Cold Machine are quality guaranteed. We are China Origin Factory of Z Cold Roll Forming Machine. If you have any question, please feel free to contact us.
