Shelf Rack Roll Forming Machine adopts servo controlled material feeding technology for complex punching to guarantee precision. This storage rack roll forming machinery also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength. Racking Roll Forming Machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, fly shearing system, run-out table, electronic control system and hydraulic system.
Racking Roll Forming Machine workflow :

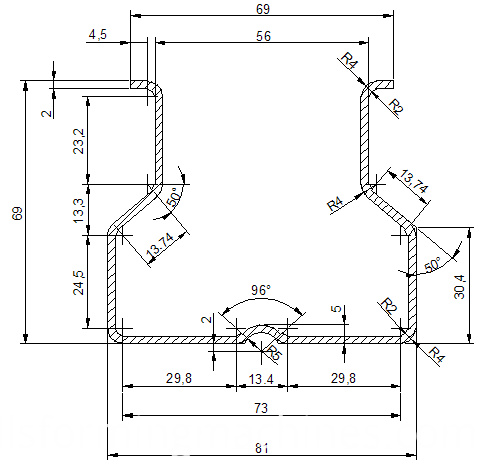

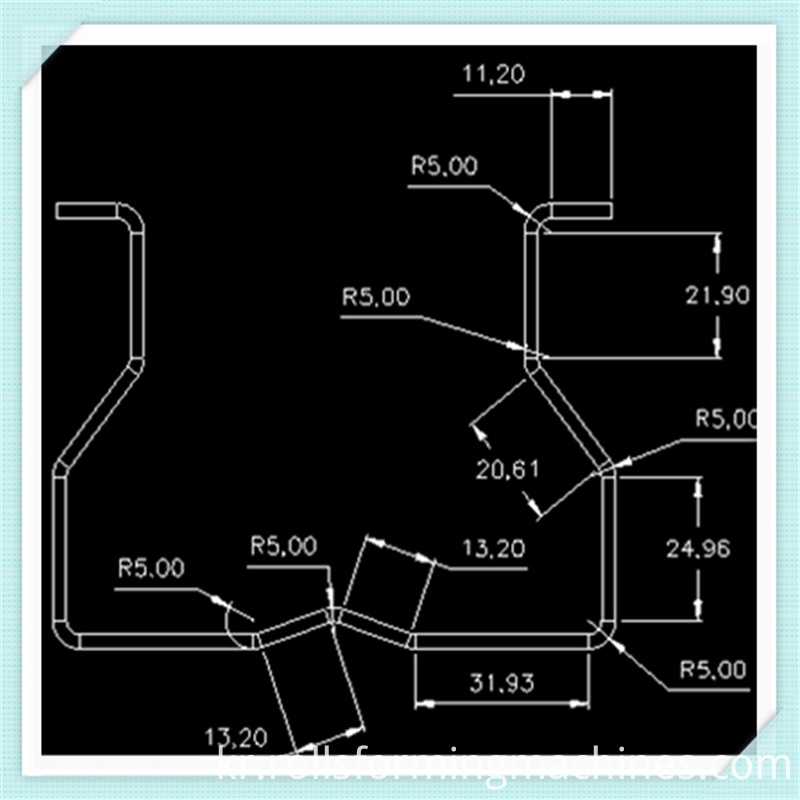

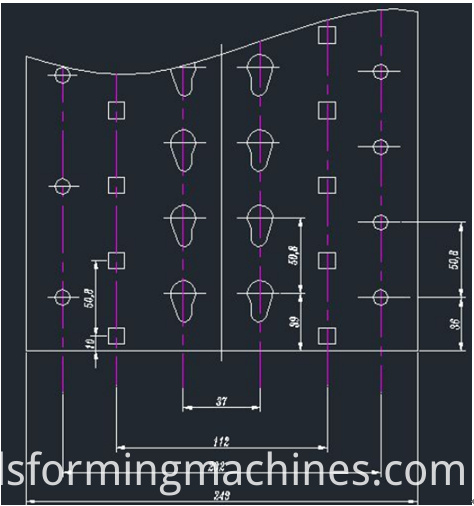

De-coiling→Leveling→Material feeding →Punching→Roll forming→ Straightening→Cutting off→Finished product running out Profile drawing
The component of Steel Racking Machine:
This machine buildup by de-coiling (mainly consists of un-coiler and its base), gearing rigging, roll stand and main machine, pressuring system, cutting equipment, hydraulic system, control system, and product supporter.
Quickly parameter:
| Description | Introduction |
| Working efficiency | 5-8m/min(not include cutting time) |
| Thickness of Material | 2-3mm |
| Control system | Panasonic PLC |
| Uncoiler system | 5Ton Manual Operation |
| Side- wheel | 7 Sets |
| Servo feeding | 1 set |
| Servo feeding power: | 3.0kw |
| Punching | 80T[70 times/min] |
| Forming by rolling | Roll 18 times |
| Roller material | GCR15 Aluminium processing after quenchin HRC58-62degree, Chrome plated |
| Shaft and the diameter of axle | 45#Aluminium-processing ,diameter of axle=80mm |
| Main part power | 18.5kw |
| Hydraulic motor power | 5.5kw |
| Hydraulic pressure | 12Mpa |
| Scissor material | Cr12Mov, herd steel HRC 58-62 degree |
| length tolerance | 3m±1.5mm |
| voltage | 380V, 50HZ,3 phase (adjustable by customer needs) |
| Frame form | arch type |
| Driving Method | Gear driving |
| Color | Yellow and blue(adjustable) |
| Size | length*Width*Height - 20*1.3*1.2m |
| Package | Nude package in 2*40GP container |
| Delivery date | 60 working days |
| Payment Method | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |

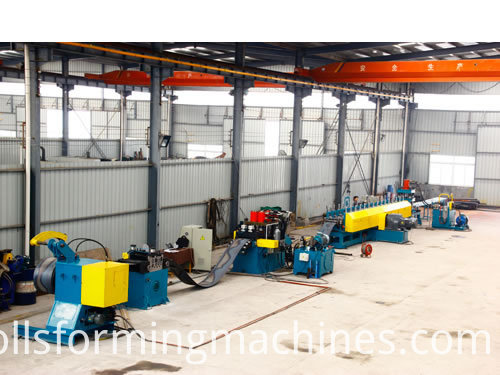

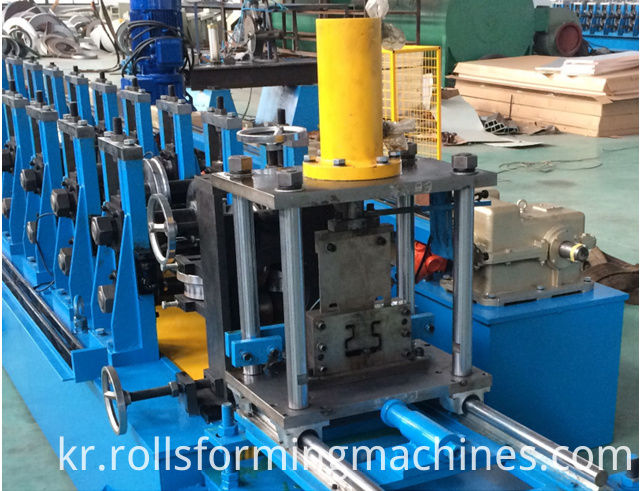

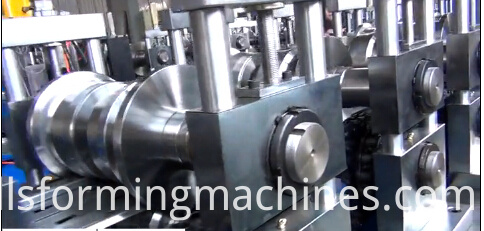

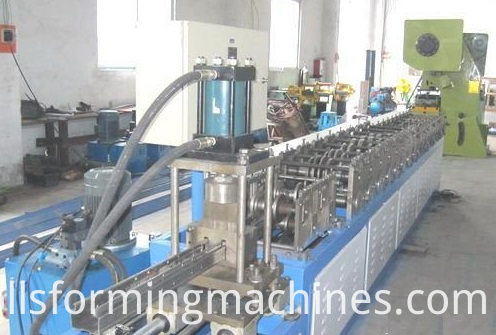

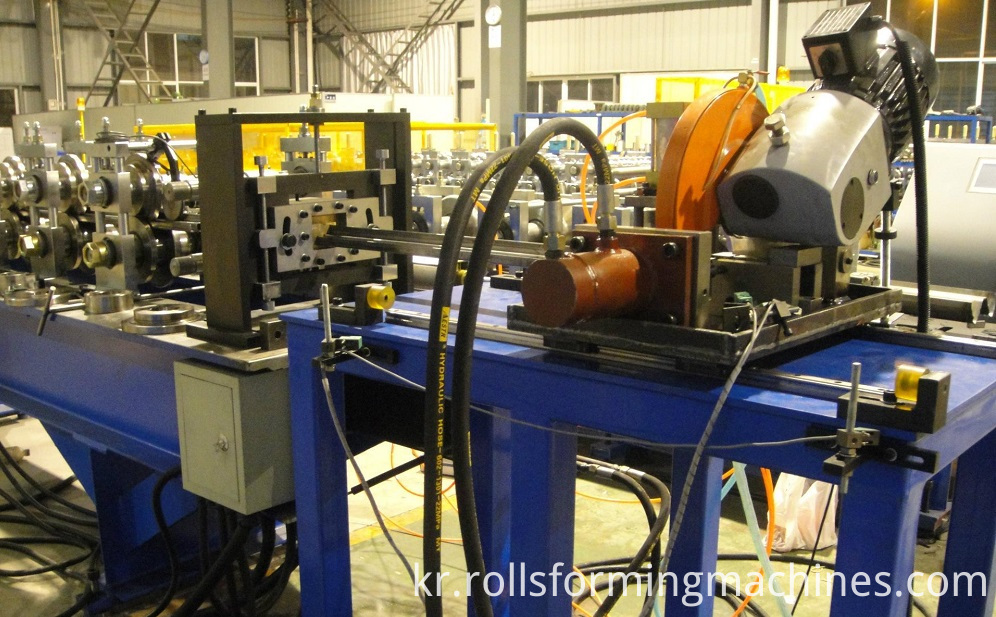

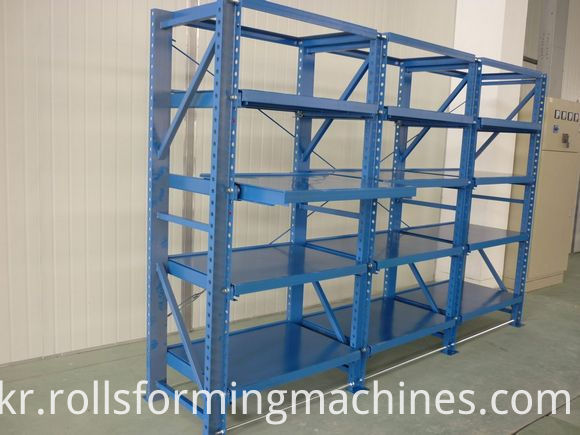

More pictures of Racking Roll Forming Machine for you reference:
