Hydraulic Steel Roof Panel Forming Mahcine With Oil Pumb
High Quality Standard Roofing Panel Roll Forming Mahcine is also called tile forming machine.The most important thing is that we can design it as our client's request, no matter on the drawings or the sizes and brand of every part, we will try our best to satisfy our cuotomer's requirement.Normally the working speed can be 12-18 m/min.Material type commonly are PPGI, galvanized coil,galvalume coil and so on.
Thickness is 0.3-0.8mm.
Un-coiler System(Hydraulic Uncoiler with Coil Car of 6 Tons)
Usage: It is used to support the steel coil and uncoil it in a turntable way.
It is a kind of automatic uncoiler,driven by the electric motor meanwhile adjust speed by the hydraulic system.
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

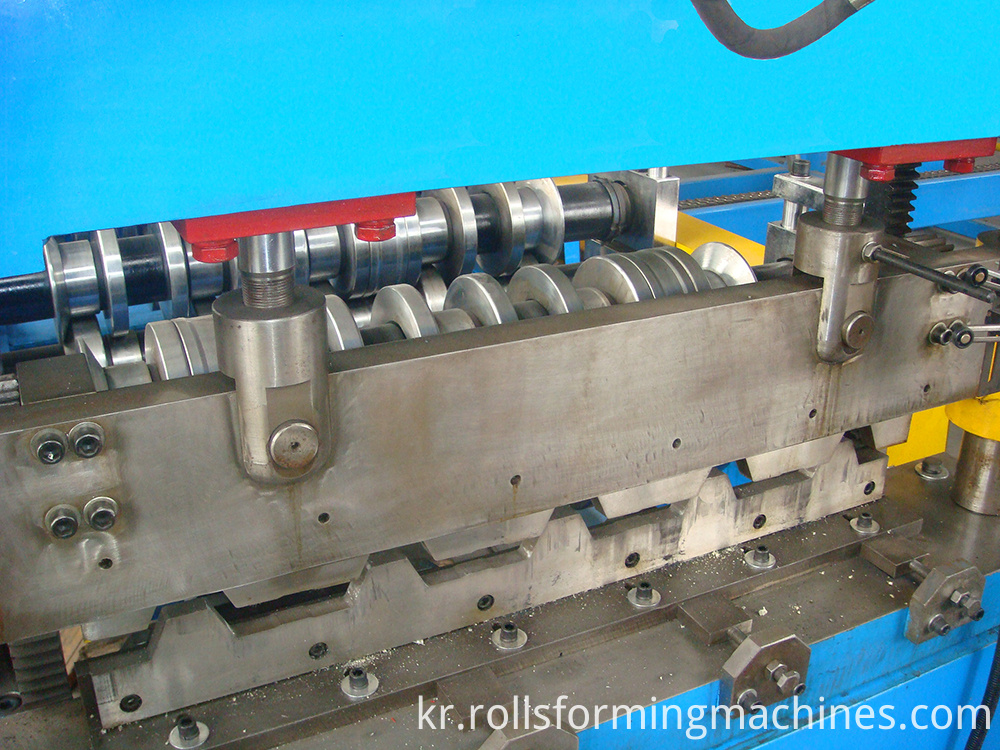

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
(include cutting tools, hydraulic tank, cutter machine)
Counter
One counter gauges length, pulses, and decides length. Omron encoder for length measurement.
Products receiving tables
1. It adopts welded steel and supported roller to transmit the products.
2.12 m
Controlling device
1.Adopted PLC, transducer, touch panel from Delta Taiwan and a Ink Jet Printer to ensure high
speed with stability, precision and lifetime.
2.Other electric element are Delta
3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Hydraulic
(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

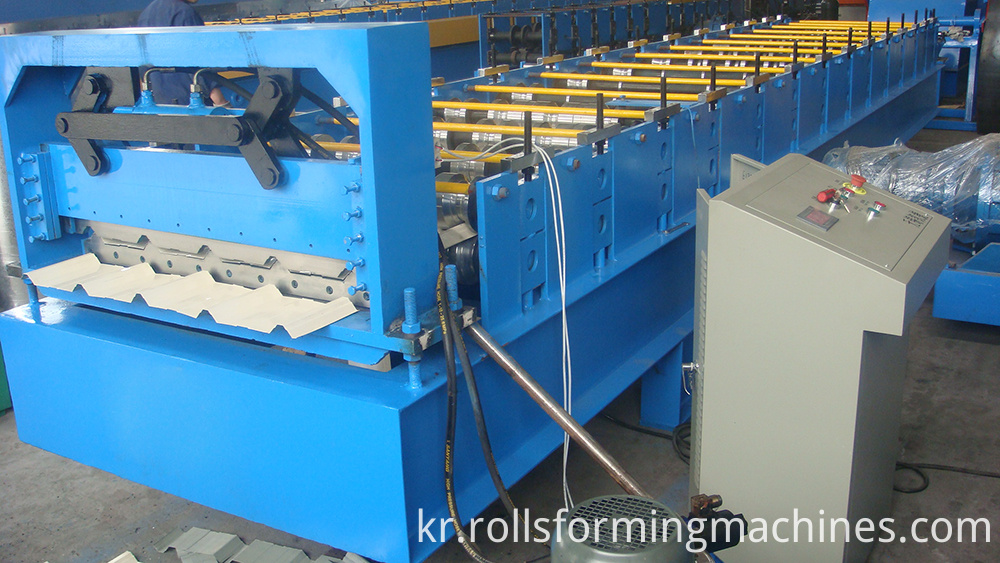

More pictures about our machine
Looking for ideal Panel Roll Forming Mahcine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Standard Roofing Panel Roll Forming Mahcine are quality guaranteed. We are China Origin Factory of High Quality Standard Roofing Panel Roll Forming Mahcine. If you have any question, please feel free to contact us.
