The usage of the EPS Sandwich Panel : EPS sandwich roof panel sheet : The products are widely used in: / purification workshop condole supports, wall and purification products; / build villas, industrial plants, warehouses, with cold storage, air conditioning send wind system; / add layer of the original building housing; (large span roof panel ideal wood.
7 Our EPS sandwich roof panel Roll Forming Machine can make different profiles sandwich roof sheet, wall sheet, the machine is aotomatic and consist the machine parts such as: unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automatic control system, user-friendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

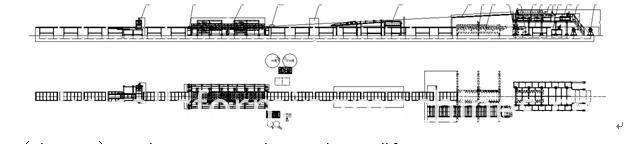

The details of EPS sandwich panel roll forming machine
Detailed i information:
Equipment covers :minimum of 80m (L) x 10m (W)
Production speed: up to 8m / min
Normal production speed :3-5m / min
The length of a roll laminator: 10m
Operating height: 1200mm
Factory internal height :7m (lifting height)
Air compressor :1.0m3x 2set, using a pressure of about 0.6 ~ 1MPa
Factory internal temperature :15 ℃ ~ 25 ℃
Polyurethane liquid storage tank storage temperature :20 ℃ ~ 23 ℃
Relative humidity :60 to 70%
Installed capacity : about 90KW
Voltage: 380v / 50Hz
Voltage deviation: ± 5%
Frequency :50Hz
Frequency deviation : ± 1%
Sensor voltage required : 24v DC
Lighting voltage : 220V AC control box

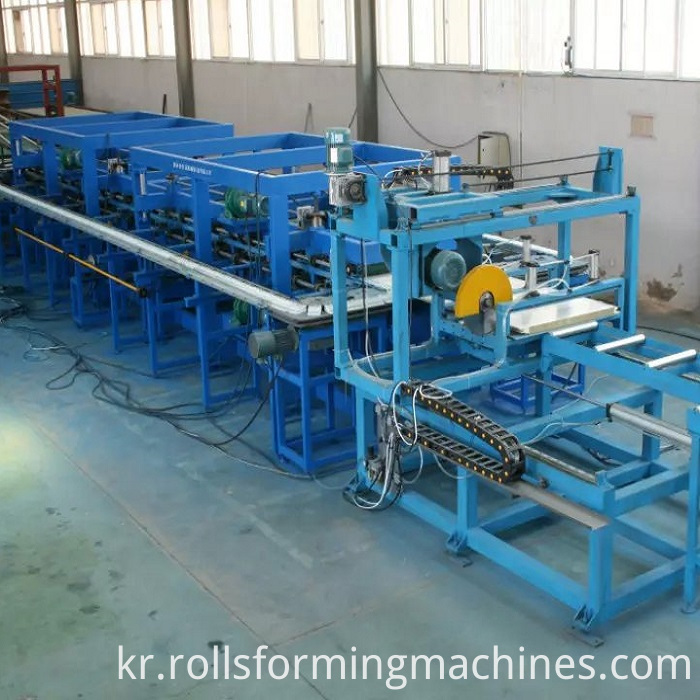

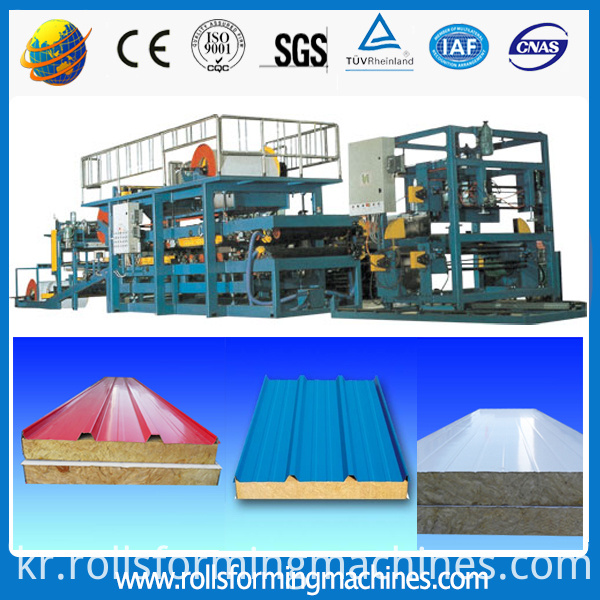

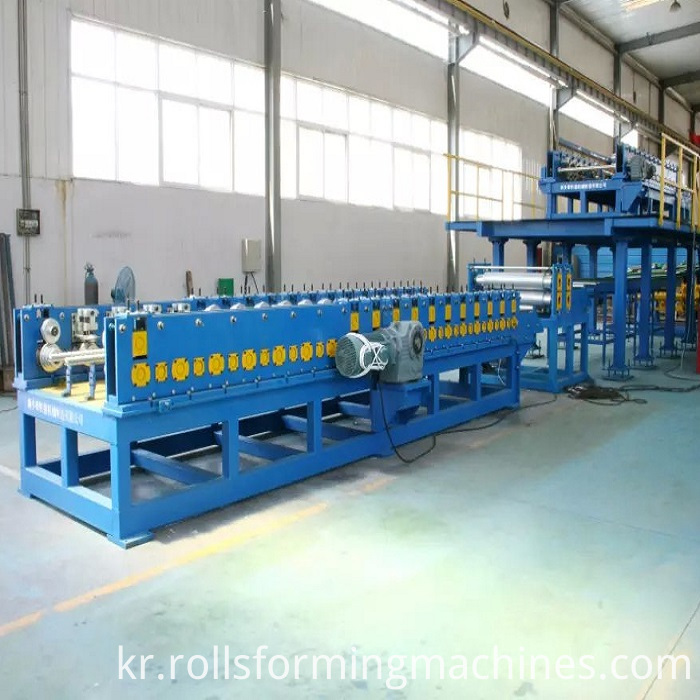

EPS sandwich panel roll forming machine pictures
1 Whats the price of this EPS sandwich panel roll forming machine line?
The EPS sandwich panel roll forming machine price range is from USD 60000-USD 100000
Different machines and specifications with different price range. Our factory is sure to offer you good price with high quality machine.
2 Can you offer me some Vedios of the EPS panel roll forming machine ?
Of course, i can offer you. You can add me whatsapp up: +86 187 1376 2880, i can record some vedio for you. Also i can send you our vedio link to you.
3 How to install the EPS sndwich roll forming machine?
We can offer you the operating manual in English telling how to operate the EPS sandwich roll forming machine.
and we can record you a vedio how to operate the roll forming machine.
If you need our technians to install the machines to your factory, we can send them to help you!
4 How to delivery the EPS sandwich roll forming machine?
If you country near a sea port, we can delivery by ship, if our country is a land country, no sea near by, for example, we will help you delivery the machines by truck.
About the freight, we can help you ask for a lower freight for your reference.
5 Whats the working life of the EPS roll formig machine, whats problems the machine used to happen?
The working life of the EPS sandwich roll forming machine is at least 10 years. The hydraulic systems and the electric system parts are easily broken, but, we can delivery the spare parts of the easily broken parts.
The sparts list is as below: Buttons,counters, Nylon wheel , protective tube, limit swith, pump pipe and so on!
If you want to know more about the EPS sandwich panel roll forming machine, please refer to: More about the EPS sandwich Roll Forming Machine
Looking for ideal EPS Sandwich Panel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PU Coated Roofing Tile Sandwich Forming Machine Making Machine are quality guaranteed. We are China Origin Factory of Sandwich Panel Roll Forming Machine. If you have any question, please feel free to contact us.
Product Categories : Sandwich Panel Roll Forming Machine
