Villa used durable color roofing Tile Making Machine

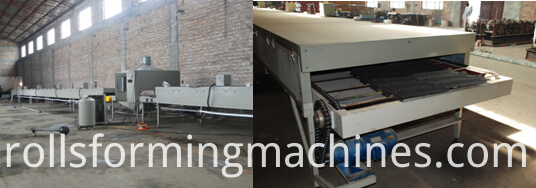

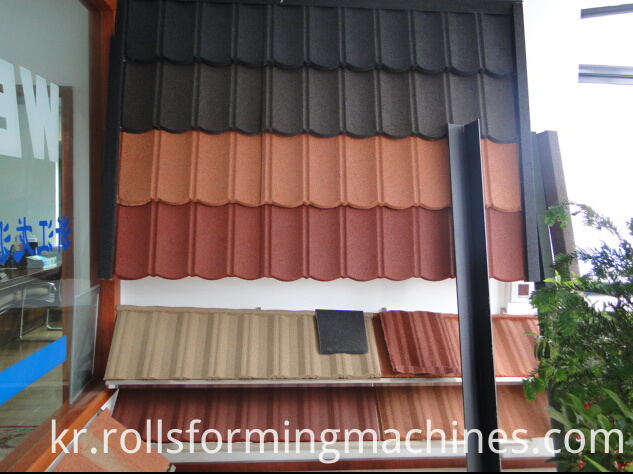

Villa used durable color roofing tile making machine is speciallly designed for villa or high end roofing tiles house. The stone coated tile has beautiful appearnace and durable water-resistance ability. Here some pictures for your reference:
1. Automatic bottom glue spraying equipment (closed type)
1.1 Outside Dimension:4000*1350*850mm(L*W*H)
1.2 Structure: Channel steel ,welded
1.3 Conveying device: Reciprocating chain conveys
1.4 Adsorption type dust removal equipment:1 set
1.5 Air compressor:1 set,7.5kw,air output 1m³/min
1.6 D46 high-pressure airless spraying system:1 set(German technology)
1.7 Automatic high-pressure airless spray gun:1 set(Japan technology )
1.8 High-pressure airless hand gun:1 set(Japan technology )
1.9 Standard 15 meters Germany imported high pressure tube without gas ,Under the highest pressure is 20Mpa
1.10 Stainless Steel Barrel for 100L:One piece

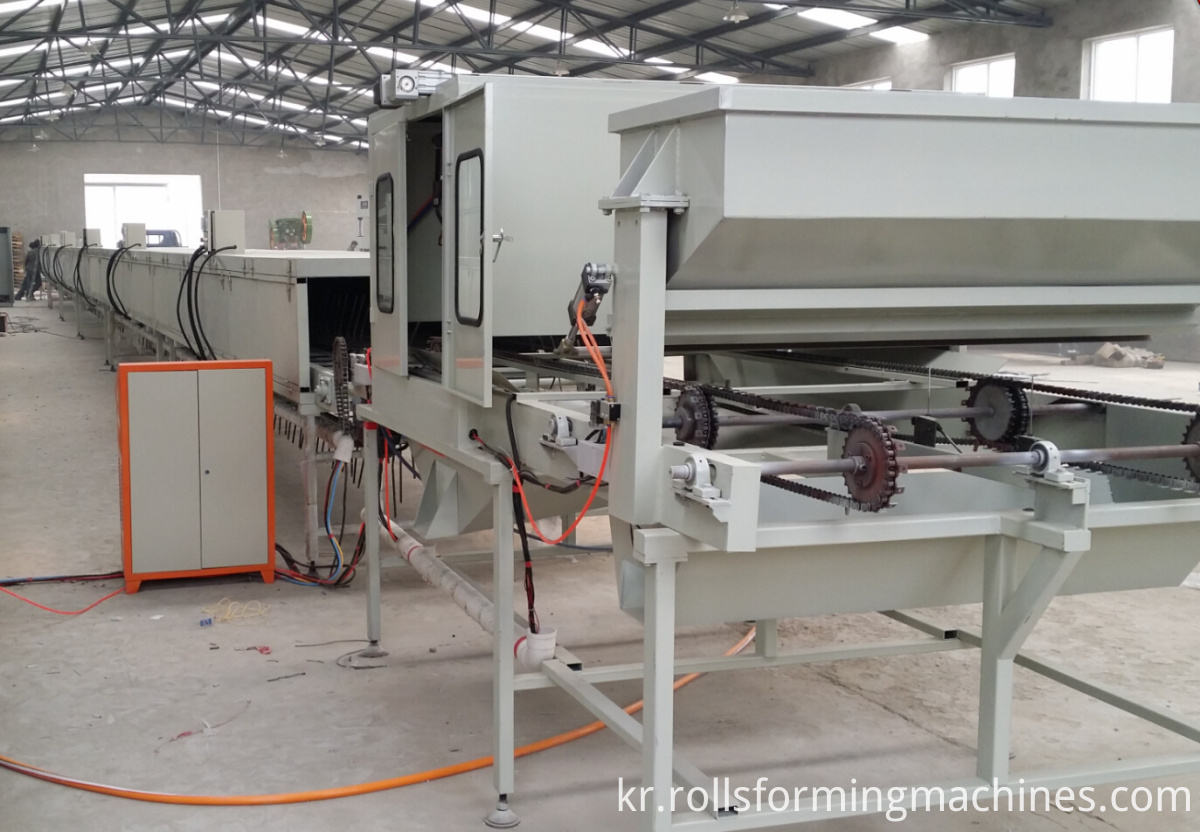

3.First drying room:1 set
3.1Outside Dimension :25000*800*1200mm(L*W*H)
3.2Structure:carbon steel welded
3.3Frame type heat preservation wall:fill up with heat preservation material which is bended with 1mm carbon steel
3.4Automatic temperature controller:10 sets,Range of adjustable temperature:0-160°
3.5 Infrared fluorescent tube:50 pcs
3.6 Conveying device: Reciprocating chain conveys
5.Second drying room equipment component
5.1 Outside Dimension :30000×850×700mm(L*W*H)
5.2 Structure:carbon steel welded
5.3 Frame type heat preservation wall:30 Meters. fill up with heat preservation material which is bended with 1mm carbon steel
5.4 Automatic temperature controller:2 sets(Range of adjustable temperature:0-160°)
5.5 Infrared fluorescent tube: 50 pcs
5.6 Conveying device: Reciprocating chain conveys,30 meters
5.7 Total equipment matches total control station 1 set (Control system)
5.8 Productivity:3-6m/min Calculate as 1.2m per piece, eight hours, produce 1500pcs every day
5.9 Whole machine power:130kw
5.Spare parts:
Infrared heating tube:10 pieces
nozzle:2 pieces
