Road Barrier & Guardrail Making Machine
Function:
Road Barrier & Guardrail Making Machine is the equipment to press, through rolling and cold bending, the colored steel sheet with thickness of 0.5-4.5mm into two waves pattern sheet. The machine is suitable for the use of road barrierand has the following characteristic: light weight, high strength, rich colors and being earthquake-proof and fireproof, etc. Now the machine is widely used. It has advantage of pretty appearance, durable using ,longlife ,low energy consumption and so on.
Final products and profile:
Road Barrier & Guardrail Making Machine Process Flow:
Uncoiling→Feeding material into machine→Punching → Roll forming→Measuring length→ Auto cutting→Products receiving

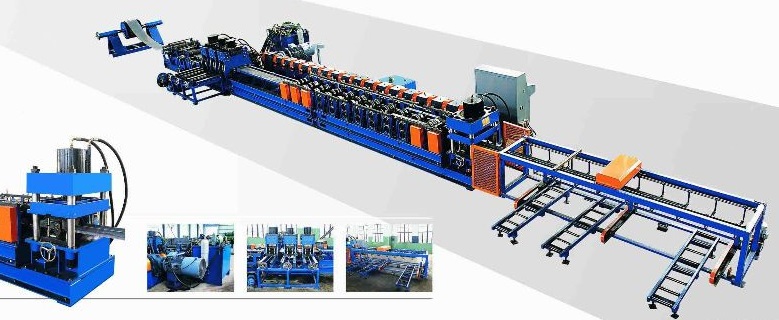

Components of Road Barrier & Guardrail Making Machine
Suitable Material Type:GI/PPGI/AL
coil width:488mm
Length Tolerance:±2mm/6m
Working Speed:25 m/min Standard machine
Total Power: 30KW
Total Weight: About 15T Up to final design
Un-coiler System

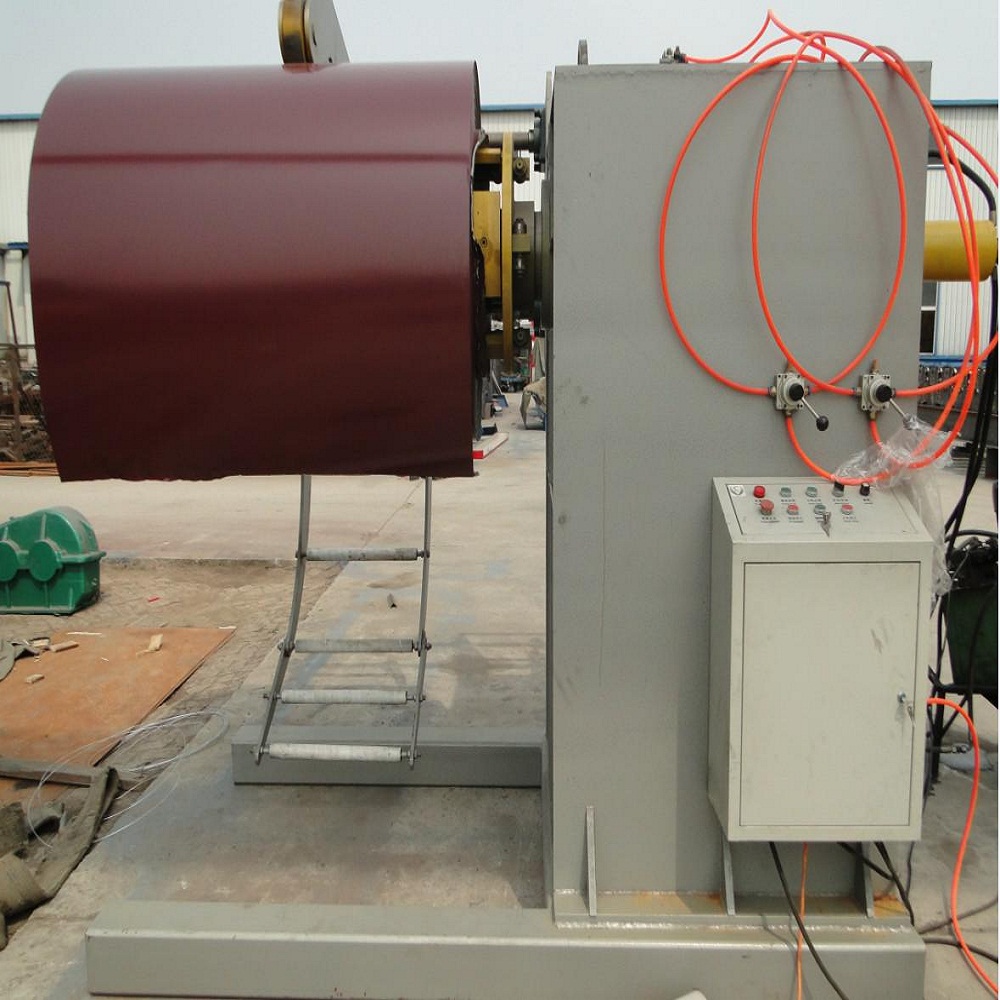

Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system

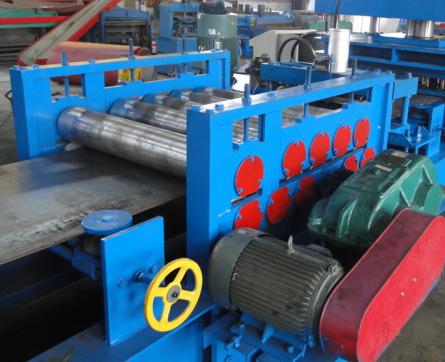

Usage: Put the raw material leveling by 9 rollers four up and five down. GCR15 45#steel raw materials with quenched treated ,diameters is 95mm.(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Punching device

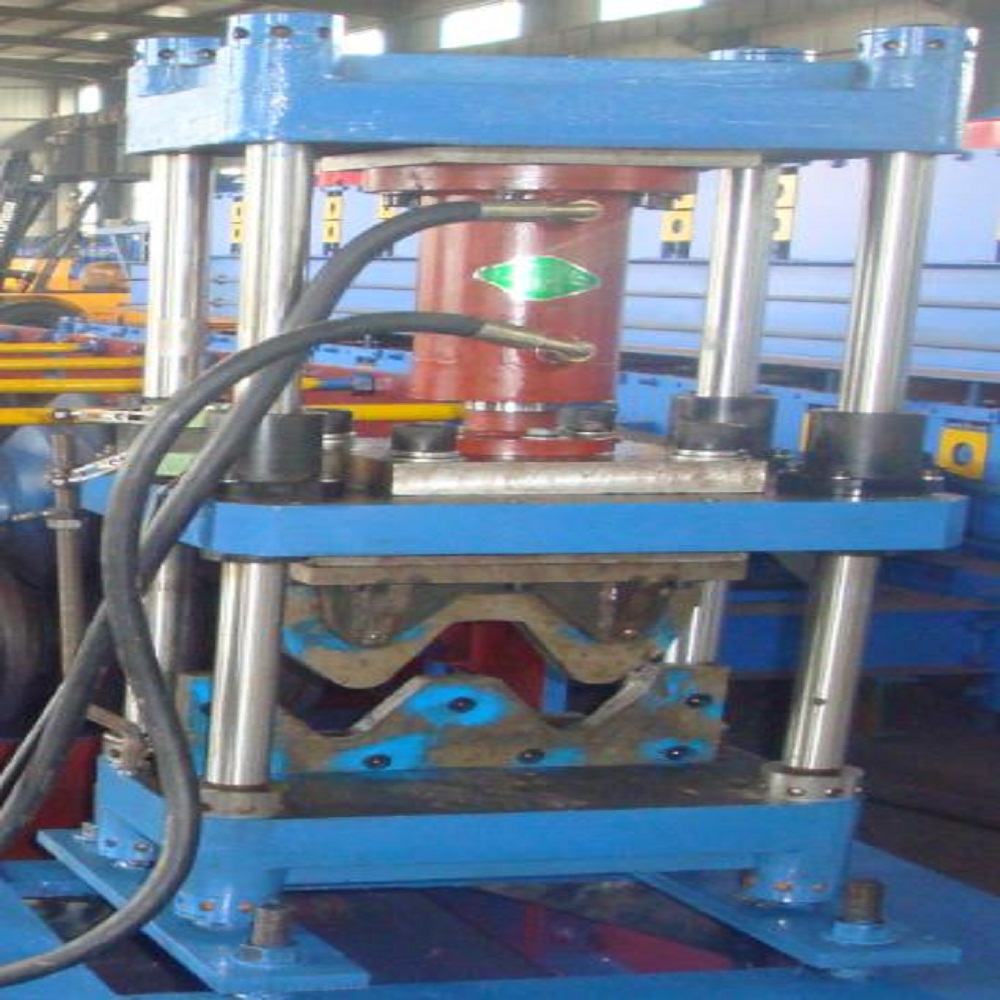

Hydralic punching .Raw materail cr12 treated with quenched .
Feeding rack
Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Length of the main part:18500*1200*1500mm
Weight of main part:About 15 t
Voltage:380V/50HZ3Phase (as customer`s request)
Roller fixer:Guide column
Frame:Middle plate welded ,Memorial arch frame type
Frame thickness:25mm
Drive mode:case of different speed
Material of rollers:45# steel with tempering
Material of shafts:45# steel with tempering
Diameter of shafts:φ95mm
Number of rollers:16rollers
Main power:30kw (Cycloidal planetary gear speed reduce
Drive mode : case of different speed
Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety
factor.
Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pc
