Zhongtuo Roll Forming Machinery Co., ltd

Steel Highway Guardrail Specifications Making Machine
Steel Highway Guardrail Specifications Making Machine
Steel Highway Guardrail Specifications Making Machine
Steel Highway Guardrail Specifications Making Machine

Steel Highway Guardrail Specifications Making Machine

Unit Price: USD 14500 - 49800 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Contact Now

Basic Info

    Model No.: ZT-005-55

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 10-15m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land,as customer requirem

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ET, ISO9001

Product Description

Steel Highway Guardrail Specifications Making Machine

Steel Highway Guardrail Specifications Making Machine, also known as Highway Guardrail Making Machine, is commonly used for producing crash barrier and W shaped guardrail. In order to improve road safety, the crash barrier is designed to prevent vehicles from leaving the roadway.

Steel Highway Guardrail Specifications Making Machine is mainly composed of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and PLC control system.

Steel Highway Guardrail Specifications Making Machine

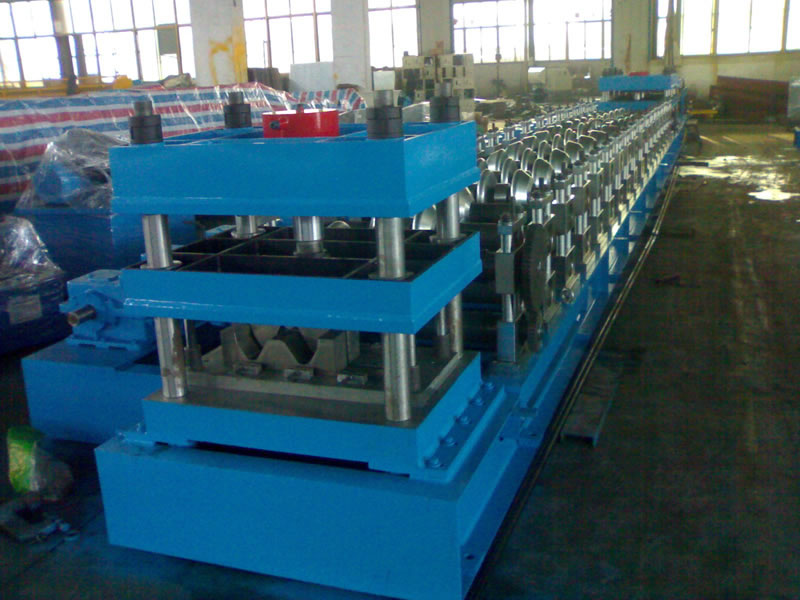

Some pictures for Steel Highway Guardrail Specifications Making Machine:

Steel Highway Guardrail Specifications Making Machine

Working process:

Uncoiler--- Punching---Roll forming---Cutting---Packing table.

Detailed information of Steel Highway Guardrail Specifications Making Machine:

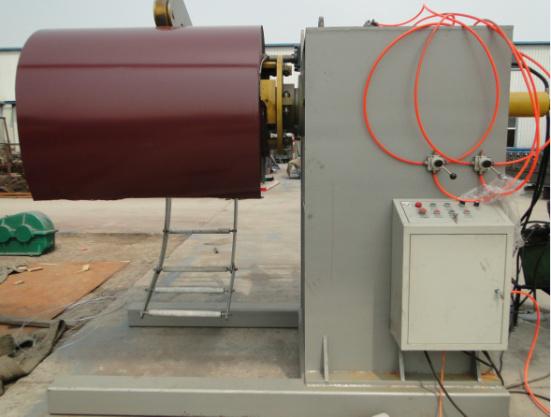

Hydraulic decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.

1.ID:500-550mm

2. Loading ability:5000kg

3. Hydraulic power:3kw

4.Motor:3kw

Steel Temporary Guardrail Systems Roll Forming Machine

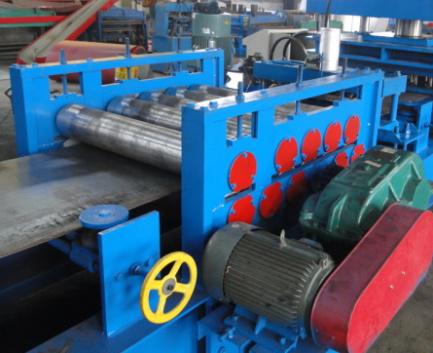

Feeding and leveling part for Steel Highway Guardrail Specifications Making Machine

1. Roller material after quenching

2. 9 rows station for leveling: 4 up 5 down

3. The diameter of raw material 95mm ,45 steel after quenching

4. Feed a side wheel GCR15 raw materials, after quenching

Steel Temporary Guardrail Systems Roll Forming Machine

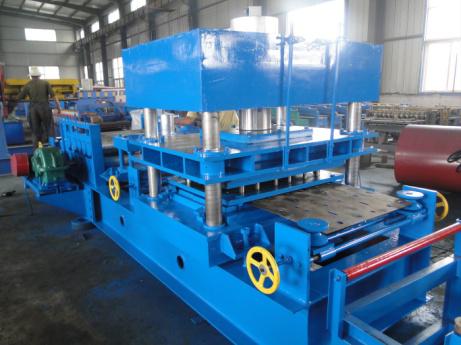

Punching and shearing part

1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt

2.Shearing blade material:Cr12 after quenching.

3. Shear error: +/- 2mm

Steel Temporary Guardrail Systems Roll Forming Machine

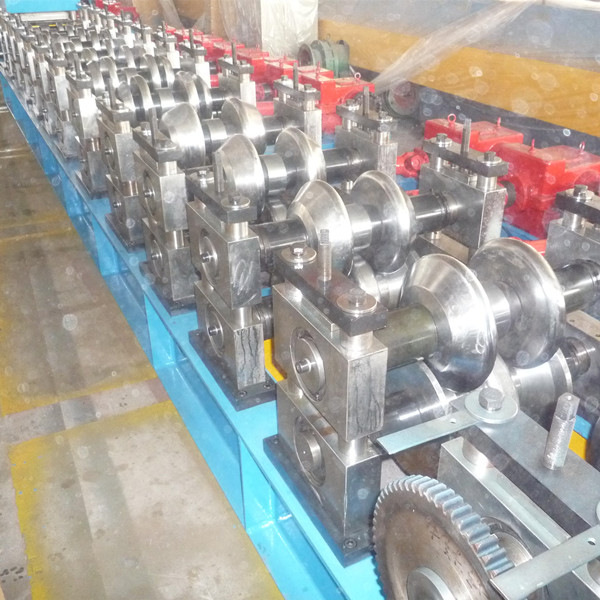

Roll Forming Machine

Advantage: to make sure long time using, working steady and high speed.

1. Main-length: about 20.5*1.2*1.5m

2. Machine weight: 15.5 Ton

3. Voltage: customer choice

4. Fix wheel types: medium plate

5 Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining

6.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt

7 Rolling station:20 stations

Steel Highway Guardrail Specifications Making Machine

Shearing system

Shearing blade material:Cr12 after quenching.

Shear system: automatic hydraulic shear system, advanced, no waste edge, high security.

Shear error: + 2mm

We use PLC and encoder. This type is higher than the photoelectric measurement.

Steel Temporary Guardrail Systems Roll Forming Machine

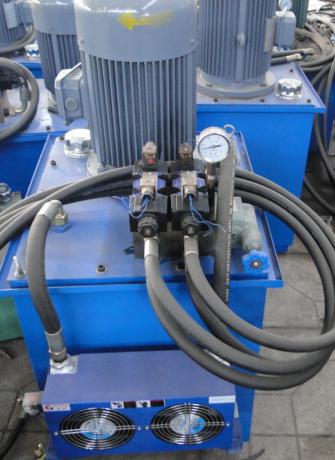

Hydraulic system

1.Power: 18.5kw

2.Hydraulic oil type: 46#

3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

Steel Temporary Guardrail Systems Roll Forming Machine

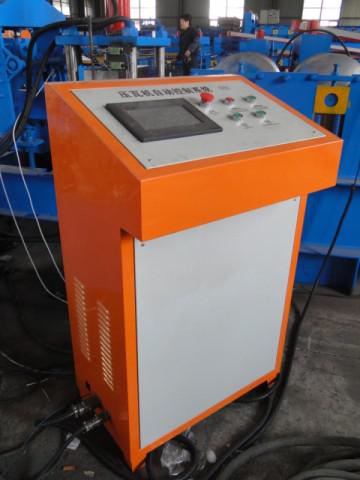

Electrical system

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.

2. automatic fixed length

3. automatic counting

Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

Steel Temporary Guardrail Systems Roll Forming Machine


Looking for ideal Highway Guardrail Systems Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Highway Guardrail Machine are quality guaranteed. We are China Origin Factory of Highway Guardrail Specifications. If you have any question, please feel free to contact us.

Product Categories : Guard Rail Roll Forming Machine
