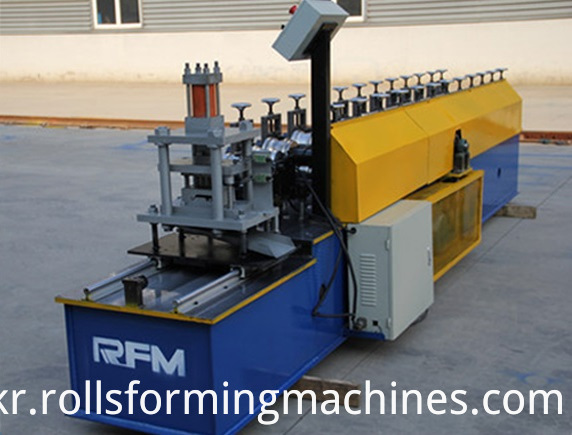

Steel Shutter Door Slide Making Machine

For the steel shutter door slide making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.8mm, the shape will be design by your demand.

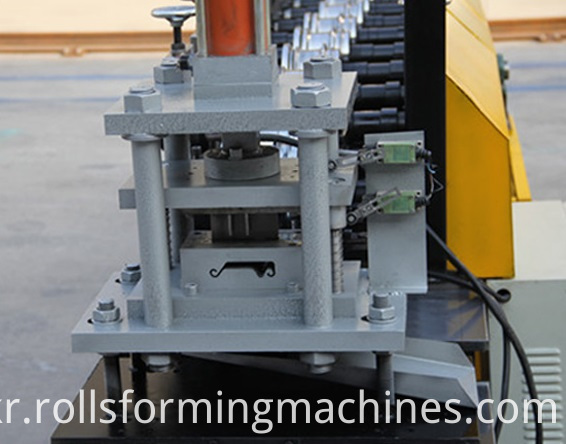

For all the Shutter Door Slide product line, it has many parts: 1. Decoiler the coil. 2.Feeder to the punching holes machine(it can make the shutter door slide cover with holes). 3.Roll forming part, for our mahcine, the forming speed will be 0-30m/min, it is asjustable.Generally we will make the steel shutter door slide making machine with gear drive, it will give machie a strong power to move. 4.Punching the lock holes. This part will together with cutting blade. When it cutting, the machine will punching the holes together. 5.Cutting part. We have two types

of cutter for you choose,one is fly saw,another is hydraulic cutter.

Process Flow of Steel Shutter Door Slide Making Machine:

Uncoiling→ (Perforation machine )→Feeding material into machine→Roll forming→Measuring length→ (punching part)→Auto cutting→Products receiving

N.B: you can choose the Perforation machine and punching part as your demand.

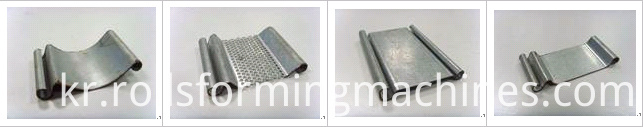

The product we can do :

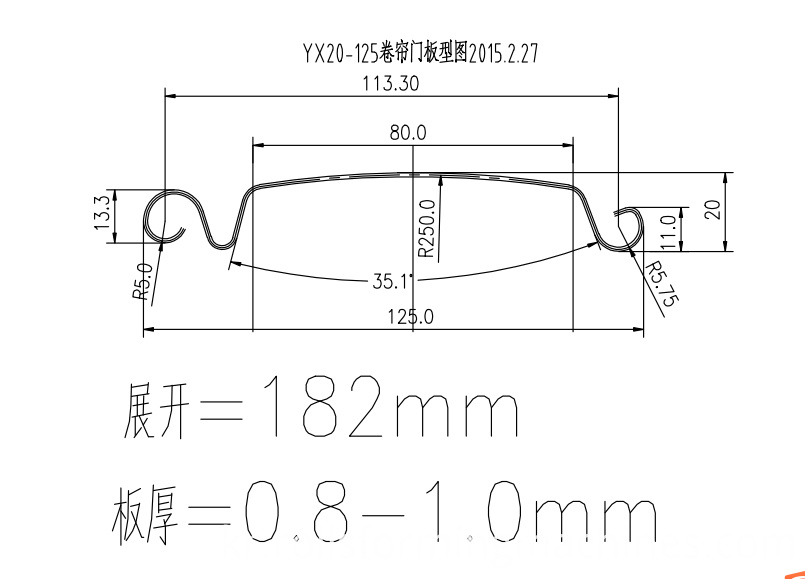

As a manufacturers,we can make the shutter door machine by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of shutter door machine,such as shutter door machine with perforation and holes,Australian-style shutter door and shutter door slat. And now, we start the new business about shutter door machine.Here is some profile drawings for you reference.

Parameters of Steel Shutter Door Slide Making Machine

Raw material

Type: colored steel plate, galvanized plate, or aluminium plate

Thickness: 0.5---1.5 mm (As customer`s need)

Material hardness: 550 Mpa---350 Mpa

Material width: 117mm-310mm (According to customer`s profile)

Decoiler

Max width: 300mm (According to customer`s profile)

Inner diameter: 450-650mm (According to customer`s profile)

Max Loading capacity: 5 T

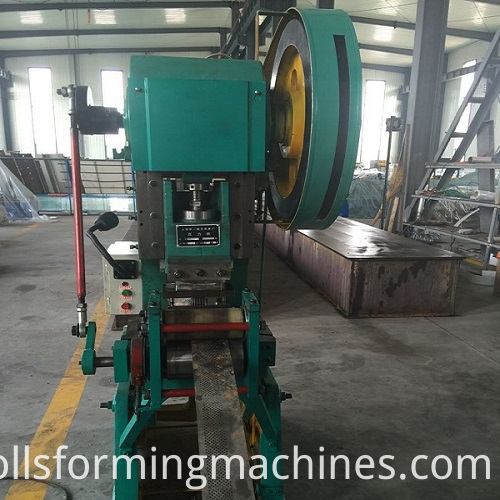

Perforation machine

Power: 4KW (According to the thickness)

The distribution,area and size of the holes: As customer`s need (The basic information for quote the Perforation machine)

Thickness: 0.3---1.5 mm (As customer`s need)

Main roll machine of Steel Shutter Door Slide Making Machine

Working efficiency: 0-30m/min

Forming by rolling: Roll 12 rows (Final rollers depend on the design)

Roller material: Gcr12MoV quenched

Shaft material: 45#steel processing

Diameter of shaft: ￠50mm (Final rollers depend on the design)

Main part power: 5.5kw (Depend on the thickness of material and size of machine)

Hydraulic motor power: 3kw (Depend on the thickness)

Scissor material: Gcr12MoV quenched

Roller material: Gcr15MoV

Voltage: 380V, 50HZ,3 phase (As customer`s need)

Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)

FAQ

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts to replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5.How long the Steel Shutter Door Slide Making Machine could be made?

Normally speaking, the machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
