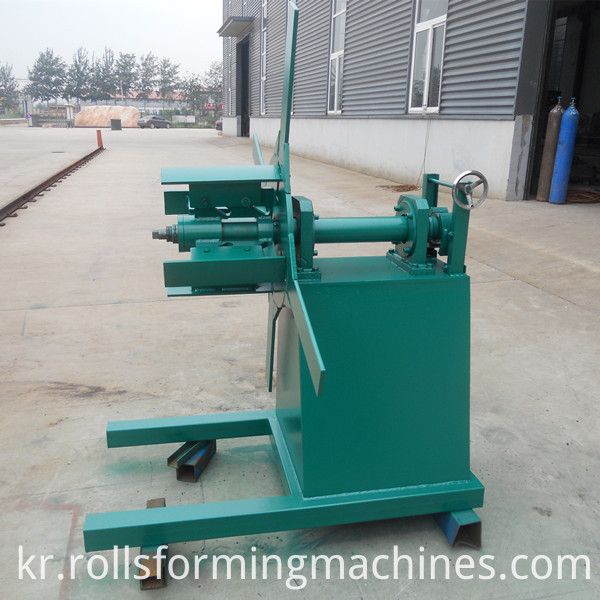

Door frame forming machine Decoiler System:
Usage: Passive uncoil pulled by roll forming system, support the steel coil and uncoil it in a turntable way.
| No : | Decoiler System Main Parameter : |
| 1 | Loading capacity | 1.5T |
| 2 | Uncoiling width | 300mm |
| 3 | Inner diameter | 450-550mm |

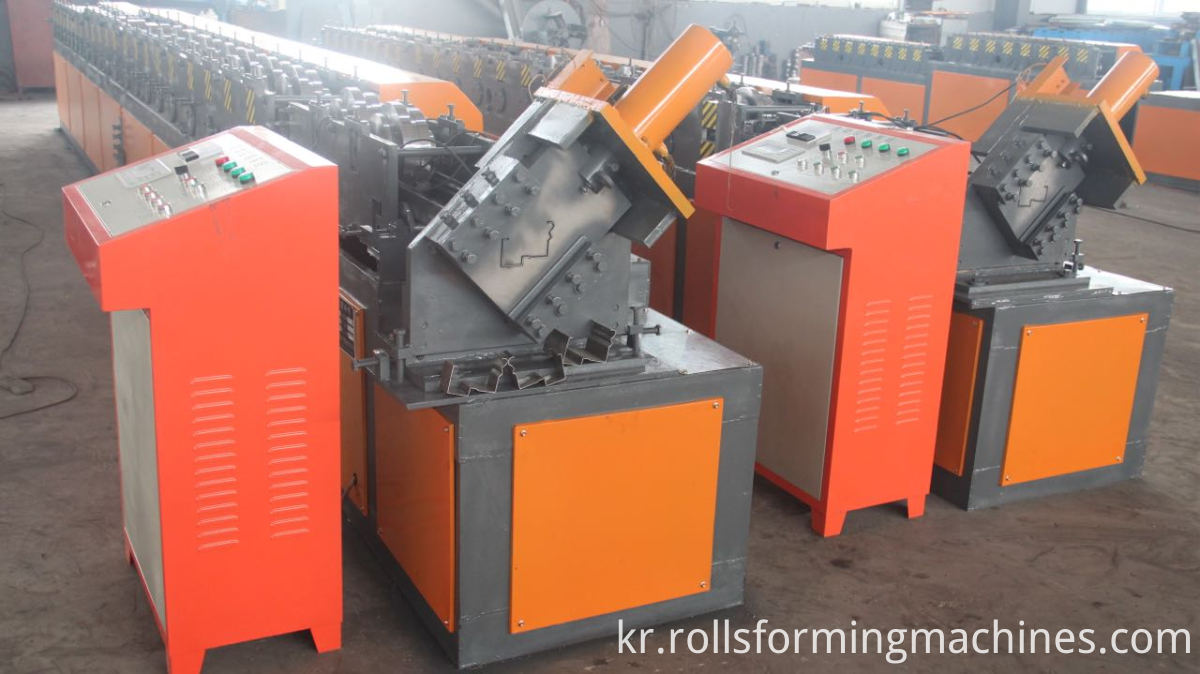

Door frame forming machine Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission, roller surfaces polishing, hard plating , heat treatment and galvanizational treatment.
| No : | Roll Forming System Main Parameter : |
| 1 | Length of the main part | about 3000*1000*400 |
| 2 | Weight of main part | 3 tons |
| 3 | Voltage | 380V/50HZ3Phase (as customer`s request) |
| 4 | Roller fixer | guide column |
| 5 | Frame | steel plate welded/ Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | gear |

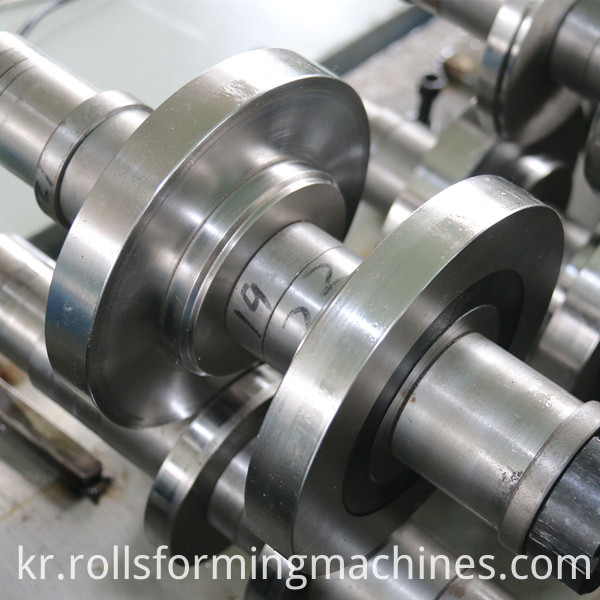

| 8 | Material of rollers | GCr12MoV |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40mm |
| 11 | Number of rollers | 10 rollers |
| 12 | Main power | 3kw |

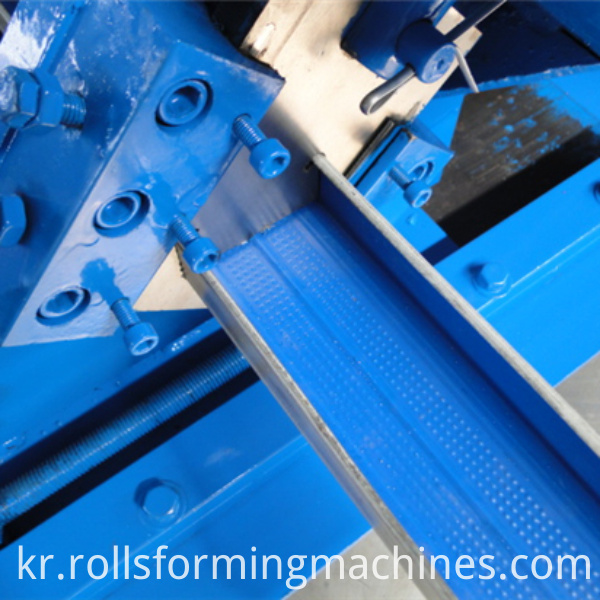

Door frame forming machine Automatic Cutting System:
Feature: Automatic cutting controlled by PLC. Ensure stability, precision and cutting speed. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.It contains one set of cutting tools, one hydraulic tank and one cutter machine.
| No : | Cutting System Main Parameter : |
| 1 | Material of blades | Gcr12MoV quenched |
| 2 | Power supply | hydraulic power |
| 3 | Frame | Pillar style with rack & pinion system |
| 4 | Stroke switch | non-contact photoelectric switch |
| 5 | Hydraulic motor Power | 3kw |
| 6 | Hydraulic oil: | 46# |

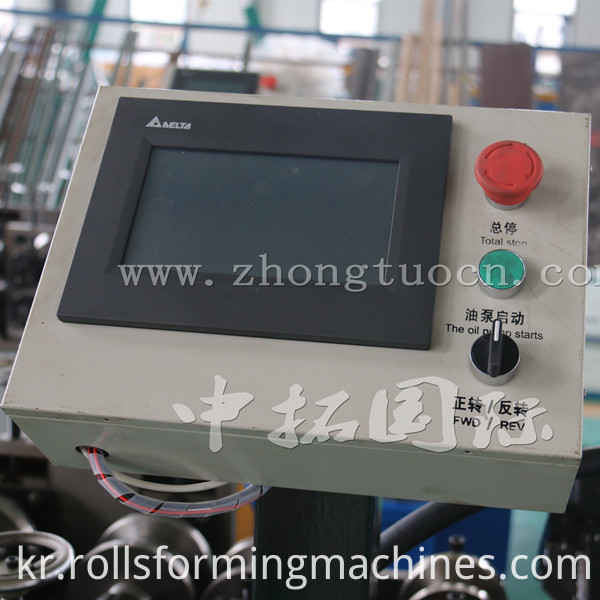

Door frame forming machine Electric Control System:
1. Adopted PLC , transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2. Equipped with movable switch , air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Door frame forming machine Our Service:
1. Installation and training of machine manufacturer:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the Roll Forming Machine for sale , and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale:
a. One year guarantee for whole roll forming machine for sale.
b. 24 hours technical support by email or calling:
c. If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Door frame forming machine Company Information:
Cangzhou Zhongtuo International Trade Co., Ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
Looking for ideal Door Frame Machine Roll Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Door Frame Roll Forming are quality guaranteed. We are China Origin Factory of Steel Door Frame Forming. If you have any question, please feel free to contact us.
