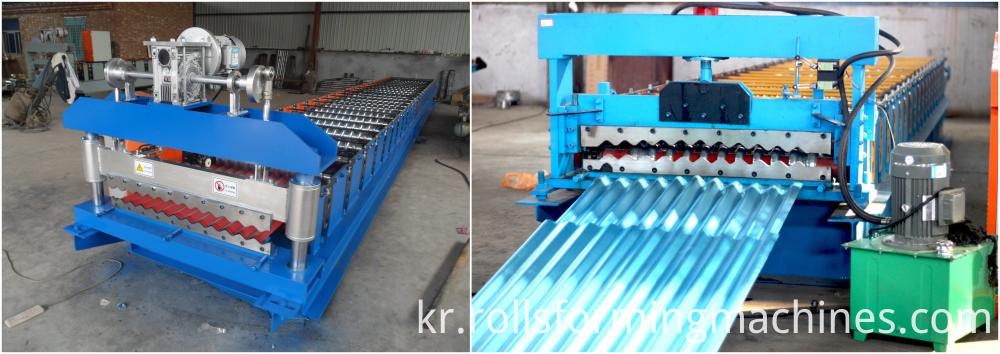

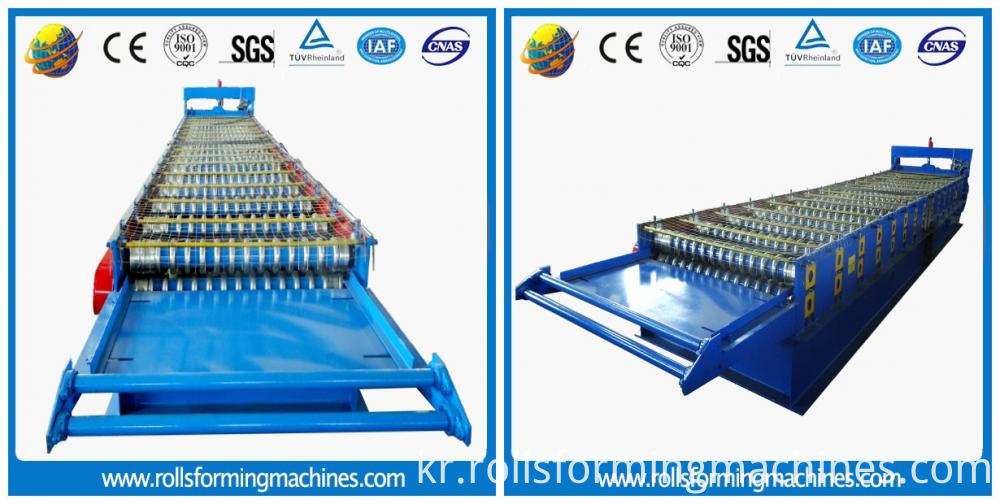

Color Panel Corrugated Roof Sheet Making Machine
Product description
This kind of Corrugated Roof Sheet Making Machine used in simple house, steel plants and other wall board production.The miximum speed can be 45m/min,greatly improving the production efficiency.The finished corrugated sheet are widely used in some temporary construction as wall or roof panel,for example .The sheet or panel is light as well as low cost but high strength, short building period, and re-cycle use.
FAQ
What other roofing sheet machine we can make:
1. Glazed Tile Roll Forming Machine
2.Color metal roof and wall sheet
What makes our machine different with orthers?
1. Pay more attention to details. For the surface grinding, roller grinding, we would like to make it perfect smooth, as if so, the finished product surface will have no scratch.
2. We customize machine stricktly according to the tech based not fully on the customer requirement as the tech team have more than 16 working experience. If some ideas is not practical, we will point it out at the first time.
3. We presist that only high quality machine can make customer satified.
Here some knowledge about the Roofing Sheet Roll Forming Machine:
1. How to make many different drawing profiles by one machine?
Normally speaking, one machine could produce many types drawing profile roofing sheet just by adjusting the roller spacer.
But if you do not have knowledge of machine, you can choose the double layer roll forming machines. For example, by double layer machine, you can either make round wave or trapezoid wave.
2.How to check roofing sheet machine quality?
When machine working, there will be finished product out, checking the edge of sheet can help you tell whether the machine swing or not when working.
Check the machine frame thickness, diameter thickness, roller diameter and others can help you tell the machine quality.
Specification of Metal Floor Deck Sheet Panel Roll Forming Machine
Material Type:GI/PPGI/AL
Material width:914/1000/1200/1220/1250mm(customized)
Material Thickness:0.3-0.8mm
Sheet length: Any length
Length Tolerance:±2mm/6m
Working Speed:8-25m/min (10 piece per min as 8 feet per piece,standard machine)
Control System:Mitsubishi/Siemens PLC& transducer(customized)
Total Power:About 8.5KW
Total Weight:About 6T(up to the final design)
Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system
Loading-capacity:5T
Uncoiling-width:1000/1200/1250mm
Inner-diameter: 450-550mm
Entry Beach
Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

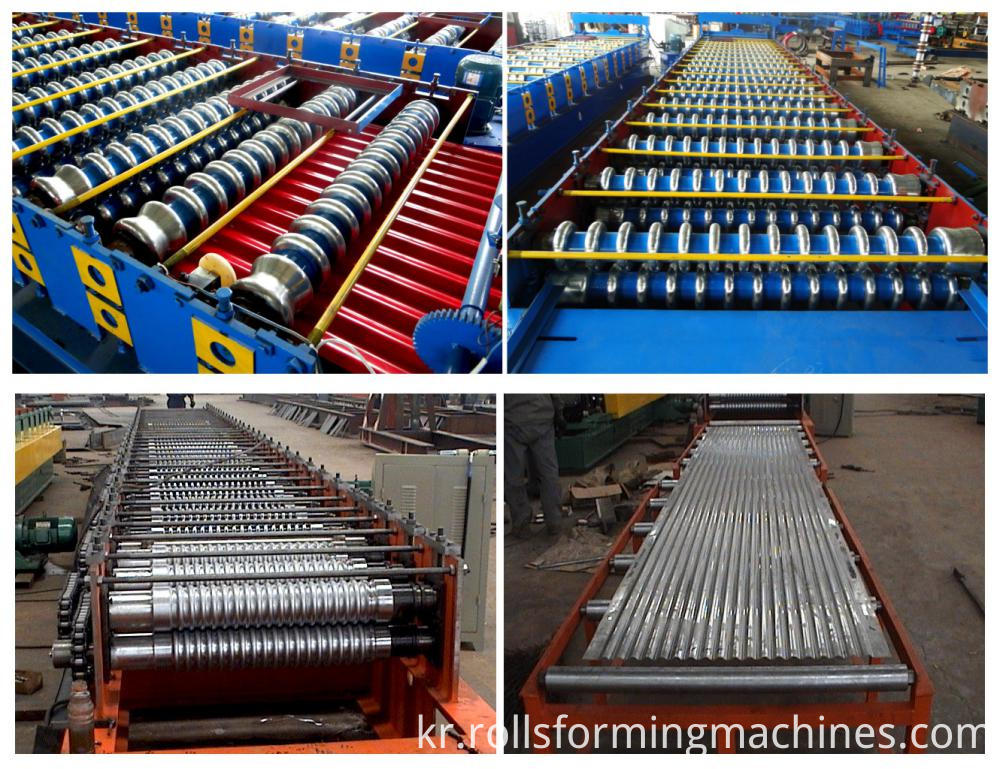

Main Roll forming machine
Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Frame : 350 H steel
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Length of the main part:8650*1650*1500mm
Voltage:380V/50HZ3Phase
Roller fixer : middle plate
Material of shafts: 45#steel
Diameter of shafts: φ80mm
Number of rollers : 18 rollers
Shearing Mechanism
Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Function: Automatic cutting controlled by PLC.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Products receiving tables
Looking for ideal Corrugated Cold Roof Sheet Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Corrugated Roof Metal Sheet Machine are quality guaranteed. We are China Origin Factory of Corrugated Color Cold Metal Sheet Machine. If you have any question, please feel free to contact us.
