Double Deck Steel Roofing
Panel Forming Line
Double Deck Corrugated Roof Sheet Making Machine Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
Details of Double Deck Corrugated Roof Sheet Making Machine :
Parameters:
| No. | Main Parameters of Double Deck Corrugated Roof Sheet Making Machine |
| 1 | Suitable to process | Colored Steel plate, galvanized board, aluminum plate |
| 2 | Control system | PLC control |
| 3 | Productivity | 15-20m/min |
| 4 | Width of the raw material | 1250mm |
| 5 | Thickness of the plate | 0.3-0.6mm |
| 6 | Rollers | Up layer:13 rows Down layer:18 rows |
| 7 | Diameter of the rollers | 70mm |
| 8 | Rolling galvanization thickness | 0.05mm |
| 9 | Material of the cutting blade | Cr12 |
| 10 | Dimension | 9.2m*1.6m*1.4m |
| 11 | Weight | About 13.2T |
| 12 | Voltage | 380V 50Hz 3phases |
| 13 | Power | 5+4kw |

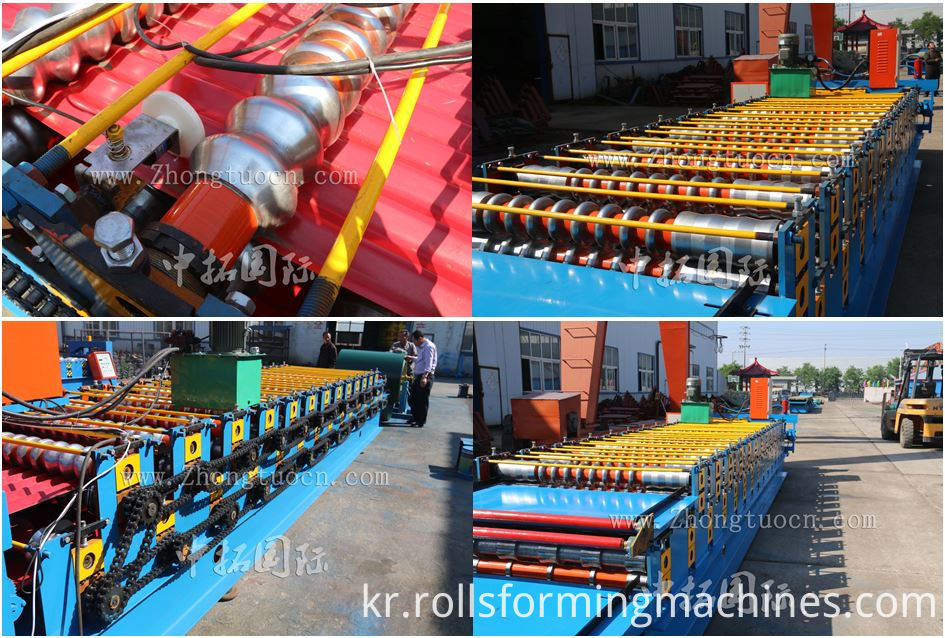

More photos of Double Deck Corrugated Roof Sheet Making Machine :
Components of Double Deck Corrugated Roof Sheet Making Machine
| No. | Name | Unit | Qty |
| 1 | Manual Decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Raw materials
Packaging Detail of Double Deck Corrugated Roof Sheet Making Machine :
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
| Machine Description | Quantity | Delivery time | Container Type | Price(FOB TIANJIN) |
| Double Deck Corrugated Roof Sheet Making Machine | 1 SET | 45 working days after receiving deposit | One 40GP | USD14900--24900 |
Double Deck Corrugated Roof Sheet Making Machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
Looking for ideal Double Layer Roof Sheet And Wall Panel Stamping Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Layer Roof Tile Roofing Sheet Profiling Machine are quality guaranteed. We are China Origin Factory of Metal Double Decker Layer Roof Panels
Roll Forming Machine. If you have any question, please feel free to contact us.
